DDI Series

The Grundfos DDI series is firmly established on the dosing pump market with its combination of innovative drive technology and integrated microelectronics. Users appreciate how they can simply enter the required dosing rate in litres per hour and let the DDI handle the rest.

Send An Enquiry
DDI Series
  • Features
  • Applications
  • Tech Specs
  • Dimensions
  • Downloads
  • Easy input and display of the dosing rate in l/h or gal/h with perfect calibration for optimum operating convenience and unparalleled levels precision
  • Smooth, nearly continuous dosing ensures a high process quality and optimal mixing of liquids
  • For especially viscous liquids, there are 2 slow mode steps and special valve combinations
  • Hotkey for easy query of the dosed quantity allowing optimal control of the consumption of chemicals
  • Low energy costs thanks to the EC motor technology with maximum efficiency
  • Pump excess pressure control by digital input of the maximum backpressure allowed before the pump stops
  • High process reliability thanks to the double diaphragm system
  • Radical reduction in variants and spare parts: 1 motor, 1 gearing and 2 dosing head sizes fit the complete pump series
  • Adjustment range 1:800
  • Various possibilities for individual customer applications, e.g. contact or analogue signal control, batch or timer dosing
  • Analogue and digital interfaces without extra charge
  • Commercial water disinfection
  • Biofuel
  • Bottle washing
  • CIP/SIP
  • Cooling
  • Desalination
  • Leach mining
  • Painting systems
  • Wash and clean
  • Temperature control
  • Industrial boiler systems
  • Industrial heating
  • Industrial water supply
  • Industrial water treatment
  • Industrial wastewater
  • Water reuse
  • Drinking water treatment
  • Wastewater treatment
  • Fertigation & Chemigation
Pump type   DDI 60-10 DDI 150-4
Max. capacity (normal operation)   60 l/h 150 l/h

Max. suction lift

  • Normal operation
  • Startup
6.0 m
1.0 m
3.0 m
1.0 m
Max. permissible viscosity (normal operation)  100 mPas 100 mPas

Max. permissible viscosity

  • Spring-loaded valves and Slow Mode 2
3000 mPas  1800 mPas
Max. pressure (normal operation)   2.0 bar 2.0 bar
Max. permissible temperature of dosing medium ( p < 10 bar )
Dosing head material:
PVC, PP: 0 to 40 °C
Stainless steel: -10 to 70 °C
PVDF: -10 to 60 °C
PVC, PP: 0 to 40 °C
Stainless steel: -10 to 70 °C
PVDF: -10 to 60 °C
Power supply 110-240 VAC, 50/60 Hz 110-240 VAC, 50/60 Hz
Power consumption  70 W 70 W
Input signal  External stop, pulse, analog 0/4-20 mA, low-level/empty-tank,
Optional: Flow Monitor, Profibus, Diaphragm leakage detection
External stop, pulse, analog 0/4-20 mA, low-level/empty-tank,
Optional: Flow Monitor, Profibus, Diaphragm leakage detection
Output signal  Analog 0/4-20 mA, 2 relay outputs, with selectable signal Analog 0/4-20 mA, 2 relay outputs, with selectable signal
Enclosure class  IP 65 IP 65
Permissible ambient temperature  0 to 40 °C 0 to 40 °C
Permissible storage temperature  -10 to 50°C -10 to 50°C
Max. relative humidity  92% 92%
Weight
Dosing head: PVC, PVDF, PP
Dosing head: stainless steel
5.0kg
7.0kg
6.5 kg
12.0 kg

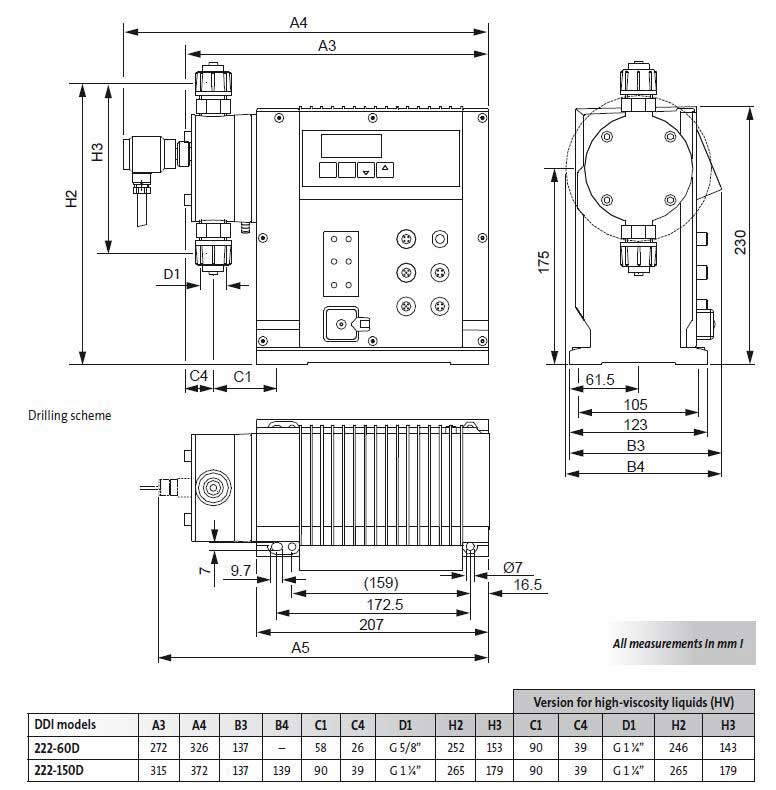

grund-ddi-dimensions
