CR Series Vertical Multistage Pumps
The CR pump is built from cast iron with all wetted parts made of AISI 304 grade stainless steel, making this pump suitable for non-corrosive liquids. With world-class efficiency, flows up to 320 m3/h and 40 bar working pressure, the CR is the perfect virtical centrifugal pump for a range of demanding applications, such as liquid transfer, circulation and pressure boosting of cold or hot water, aqua-farming and field irrigation.
Tight controls over every aspect of the production process are the secret behind the reliability of the vertical centrifugal pump CR. Grundfos production is certified in accordance with the strictest international standards (ISO 9001) and is subjected to rigorous process control. Each CR pump is tested for performance, power consumption and static pressure before leaving the factory.
- Features
- Applications

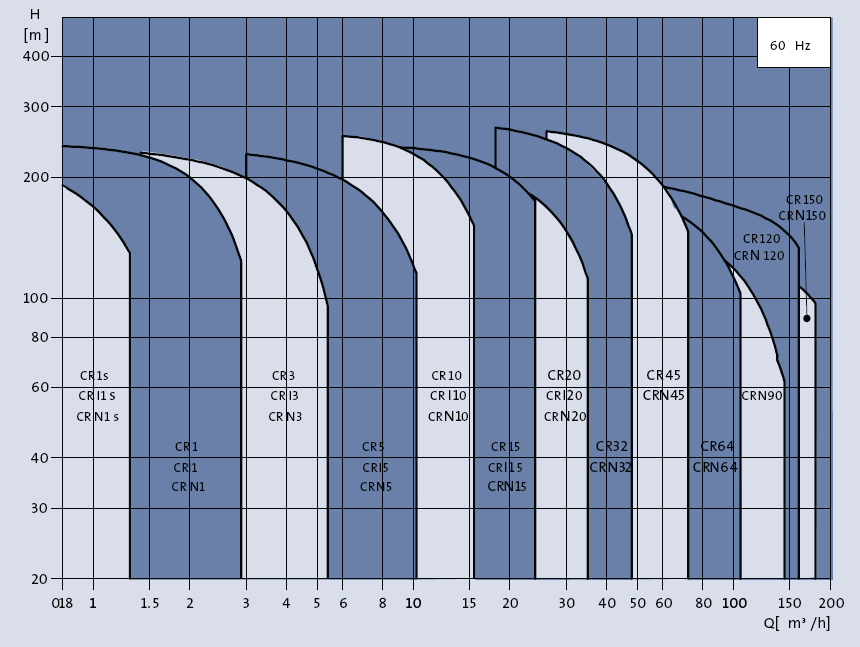

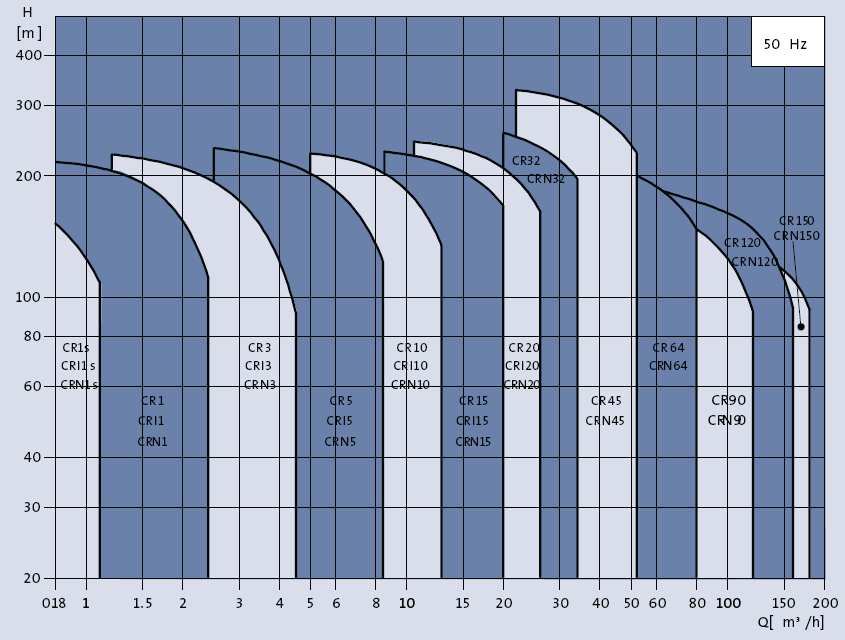

- Curves
- Tech Specs
- Dimensions
- Brochure
- Reliability
- High efficiency
- Service-friendly
- Space-saving
- Suitable for slightly aggressive liquids
- High corrosion resistance
- Single-pump solution making high pressures possible
CR Pumps provide a complete range of pump solutions so that all applications, industrial and domestic, can benefit from the Grundfos touch. The applications that can be covered include the following:
- Process water systems
- Washing and cleaning systems
- Seawater systems
- Pumping of acids and alkalis
- Ultrafiltration systems
- Reverse osmosis systems
- Swimming pools
| CR 1s | CR 1 | CR 3 | CR5 | CR 10 | CR 15 | CR 20 | CR 32 | CR 45 | CR 64 | C 89 | CR 120 | CR 150 | |
| Range: | |||||||||||||
| Temperature range (°C) | -20 to +120 | -30 to +120 | |||||||||||
| On request (°C) | -40 to +180 | -40 to +180 | |||||||||||
| Max. pump efficiency | 35 | 48 | 58 | 66 | 70 | 72 | 73 | 78 | 79 | 80 | 81 | 75 | 72 |
| Flow range (m²/h) | 0.3-1.1 | 0.7-2.4 | 1.2-4.5 | 2.5-8.5 | 5-13 | 9-24 | 11-29 | 15-40 | 22-58 | 30-85 | 45-120 | 60-160 | 75-180 |
| Version: | |||||||||||||
| CR (AISI 304/Cast Iron) | x | x | x | x | x | x | x | x | x | x | x | x | x |
| CRI (AISI 304) | x | x | x | x | x | x | x | ||||||
| CRN (AISI 316) | x | x | x | x | x | x | x | x | x | x | x | x | x |
| CRT (Titanium) | x* | x* | x* | x* | x* | ||||||||
| CR pipe connection: | |||||||||||||
| Oval flange (BSP) | Rp 1 | Rp 1 | Rp 1 | Rp 1¼ | Rp 1½ | Rp 2 | Rp 2½ | ||||||
| On request (BSP) | Rp 1¼ | Rp 1¼ | Rp 1¼ | Rp 1 | Rp 1¼ Rp 2 |
Rp 2½ | Rp 2 | ||||||
| Flange | DN 25 / DN 32 |
DN 25 / DN 32 |
DN 25 / DN 32 |
DN 25 / DN 32 |
DN 40 | DN 50 | DN 50 | DN 65 | DN 80 | DN 100 | DN 100 | DN 125 | DN 125 |
| On request | DN 50 | DN 65 | DN 65 | DN 80 | DN 100 | DN 125 | DN 125 | DN 150 | DN 150 | ||||
| CRI pipe connection: | |||||||||||||
| Oval flange (BSP) | Rp 1 | Rp 1 | Rp 1¼ | Rp 1¼ | Rp 1½ | Rp 2 | Rp 2 | ||||||
| On request (BSP) | Rp 1¼ | Rp 1¼ | Rp 1 | Rp 1 | Rp 2 | ||||||||
| Flange | DN 25 / DN 32 |
DN 25 / DN 32 |
DN 25 / DN 32 |
DN 25 / DN 32 |
DN 40 | DN 50 | DN 50 | ||||||
| On request | DN 50 | DN 65 | DN 65 | ||||||||||
| PJE coupling (Victaulic) | Rp 1¼ | Rp 1¼ | Rp 1¼ | Rp 1¼ | Rp 2 | Rp 2 | Rp 2 | ||||||
| DN 32 | DN 32 | DN 32 | DN 32 | DN 50 | DN 50 | DN 50 | |||||||
| Clamp coupling (L-coupling) | Ø48.3 | Ø48.3 | Ø48.3 | Ø48.3 | Ø60.3 | Ø60.3 | Ø60.3 | ||||||
| Union (+GF+) | Rp 2 | Rp 2 | Rp 2 | Rp 2 | Rp 2¾ | Rp 2¾ | Rp 2¾ | ||||||
| CRN pipe connection: | |||||||||||||
| Flange | DN 25 / DN 32 |
DN 25 / DN 32 |
DN 25 / DN 32 |
DN 25 / DN 32 |
DN 40 | DN 50 | DN 50 | DN 65 | DN 80 | DN 100 | DN 100 | DN 125 | DN 125 |
| On request | DN 50 | DN 65 | DN 65 | DN 80 | DN 100 | DN 125 | DN 125 | DN 150 | DN 150 | ||||
| PJE coupling (Victaulic) | Rp 1¼ | Rp 1¼ | Rp 1¼ | Rp 1¼ | Rp 2 | Rp 2 | Rp 2 | Rp 3 | Rp 4 | Rp 4 | Rp 5 | Rp 5 | Rp 5 |
| DN 32 | DN 32 | DN 32 | DN 32 | DN 50 | DN 50 | DN 50 | |||||||
| Clamp coupling | x | x | x | x | x | x | x | ||||||
| Union (+GF+) | x | x | x | x | x | x | x | ||||||
| CRT pipe connections: | |||||||||||||
| PJE coupling (Victaulic) | x* | x* | x* | x* | x* | ||||||||
| Flange (on request) | x* | x* | x* | x* | x* | ||||||||
*CRT 2,4,8 and 16
Malcolm Thompson Pumps is proud to distribute Gundfos CR Series. Please download the Product Brochure or call 1800 439 607 for further information.
