TP, TPE Series

Grundfos’ TP and TPE vertical in-line volute pumps are used in a variety of applications. The pumps are all single-stage, in-line centrifugal volute pumps with standard motors and mechanical shaft seals. The pumps are of the close-coupled type, i.e. pump and motor are separate units. Consequently, the pumps are less sensitive to impurities in the pumped liquid than similar pumps of the canned rotor type.
Two different models of vertical in-line volute pumps are available. Please note that there are a number of specific product variants available for each model.

TP Pump
This pump model is notable for its high levels of reliability and efficiency.  Quiet, highly-efficient IE3 motors are standard components. All TP Pumps are electro-coated to ensure high corrosion resistance.

TPE Pump
The main difference between TP and TPE Pumps is the motor. TPE motors have a built-in frequency converter, allowing different control methods to be employed. TPE Pumps offer benefits with respect to energy savings and increased comfort.

Send An Enquiry
TP, TPE Series
  • Features
  • Applications

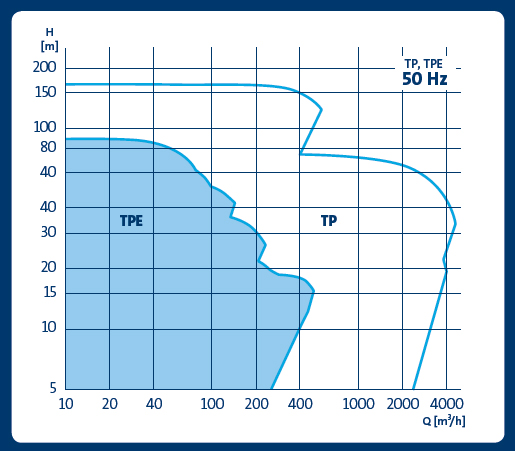

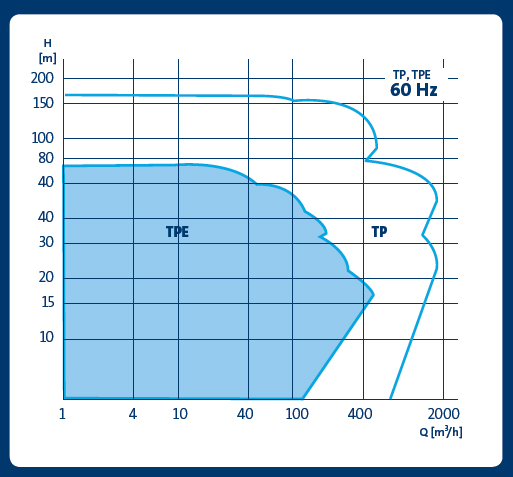

  • Curves
  • Tech Specs
  • Dimensions
  • Optimised hydraulics for high efficiency
  • Reduced power consumption
  • High-efficiency motors
  • TP Pumps are fitted with high-efficiency motors
  • High-efficiency motors provide reduced energy consumption
  • 2-pole and 4-pole TP Pumps from 0,75 kW to 375 kW have IE3 motors (By March 2012)
  • Top-pull-out design
  • Easy dismantling for service
  • In-line design
  • Unlike end-suction pumps, in-line pumps allow the use of straight pipework, which often results in reductions in installation cost and amount of space occupied
  • Hydraulically and mechanically balanced impeller (Series 300 and 400)
  • The impeller is hydraulically and mechanically balanced to increase the life of motor bearings and shaft seals
  • Pump housing and pump head/motor stool are electro-coated
  • Improved corrosion resistance
  • TPE, TPED – pumps with built-in frequency converter
  • Reduced power consumption
  • TPE and TPED motors are based on IE3 motors (except 18.5, 4-pole)

NOTE: Product information should be used as a guide only and should not be used for pump selection. For further information, please contact Malcolm Thompson Pumps on 1800 439 607.

These vertical in-line volute pumps are used in commercial buildings for air conditioning and heating applications.

The pumps are all single-stage, in-line centrifugal volute pumps with standard motors and mechanical shaft seals. The pumps are of the close-coupled type, i.e. pump and motor are separate units. Consequently, the pumps are less sensitive to impurities in the pumped liquid than similar pumps of the canned rotor type.

Malcolm Thompson Pumps is proud to distribute the Gundfos TP and TPE Series. Please download the Product Brochure or call 1800 439 607 for further information.
