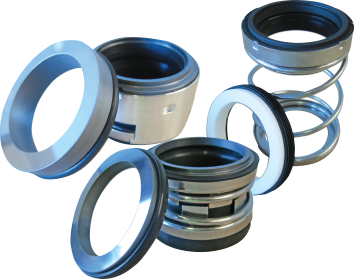

MS Series (Single Spring Seals)

The Aquaplus single spring seals (MS Series) provide a range of cost effective seal options to suit a variety of seal housings.

Send An Enquiry
MS Series (Single Spring Seals)
  • Features
  • Applications
  • Tech Specs
  • Downloads

MS301 Range

·         Temperature in the sealed chamber: -20oC~100oC

·         Pressure in the sealed chamber: < 0.6Mpa

·         Linear velocity: < 15m/sec

MS20 & MS24 Range

·         Temperature in the sealed chamber: -30oC~110oC

·         Pressure in the sealed chamber: < 0.6Mpa

·         Linear velocity: < 15m/sec

MS502 Range

·         Temperature in the sealed chamber: -30oC~220oC

·         Pressure in the sealed chamber: < 4Mpa

·         Linear velocity: < 20m/sec

MS301 Range

Major use: water pumps and submersible pumps.

MS20 & MS24 Range

Major use: water pumps and submersible pumps.

MS502 Range

Major use: oil, water and other low corrosion mediums
