Aquaplus - Ad Series Motor Pumps
Aquaplus AD Series Pumps are performance engineered and quality built to provide service under the toughest conditions. The Series is operated by compressed air or any non-flammable compressed gas and is suitable for a variety of applications in a range of industries.
We specialise in:
Plastic Models
- Polypropylene / Santoprene®
- Polypropylene / PTFE
Metalic Models
- Aluminium / Geolast®
- Aluminium / PTFE
Extensive stock holdings Australia-wide
- Features
- Applications
- Curves
- Tech Specs
- Dimensions
- Brochure
- Pumps anything that pours
- Wide range of pump types and sizes
- Patented lube-free air system
- Will not stall at slow speeds
- 100% tested prior to shipment
- Self-priming
- Non electrical
- Runs dry without damage
- Infinitely variable flow rate
- Intermittent operation or continuous duty
- Pumps fluids which contain particles
- Pumps high viscosity fluids
- Reduced solvent flash-off
- Simple modular design
- Dual manifold capability for 6mm to 25mm modules
- Parts interchangeability between models and sizes
- Mining
- Construction
- Municipal and commerce
- Shipping yard
- Wind energy
- Waste processing
- Manufacturing
- Bio diesel
- Offshore oil and gas
- Rural applications
- Agriculture
- Food processing
- Gas extraction
- Chemical processing
- Pharmaceutical
- Refinery
- Oil and gas
- Liquid removal and storage

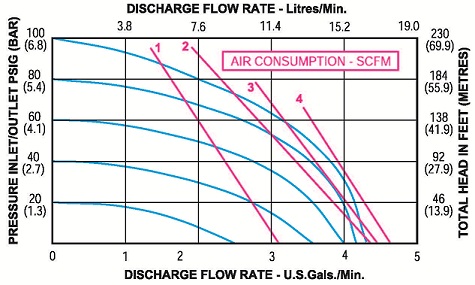

6mm Range Performance Curves

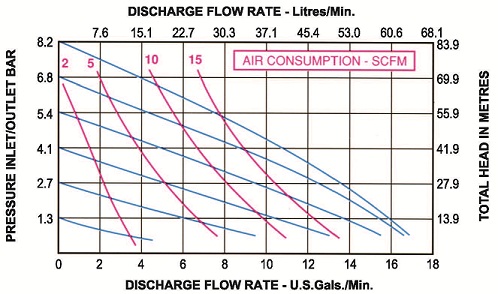

15mm Range Performance Curves

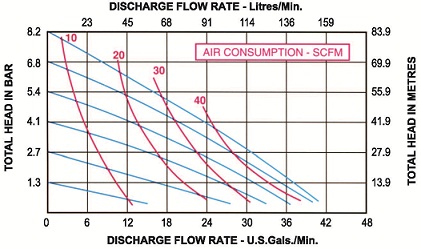

25mm Range Performance Curves

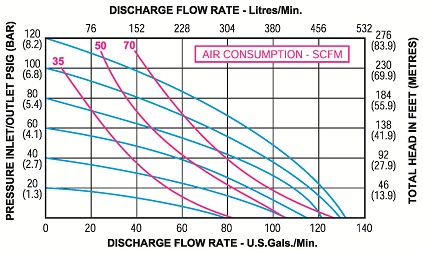

40mm Range Performance Curves

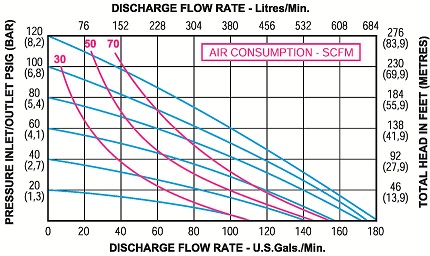

50mm Range Performance Curves

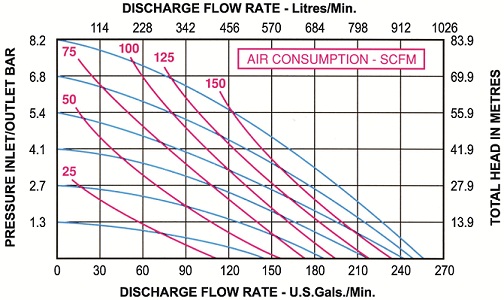

80mm Range Performance Curves
6mm Range | 15mm Range | 25mm Range | |
Capacity | Adjustable 0 to 16.3 litres/min | Adjustable 0 to 64.6 litres/min | Adjustable 0 to 155.8 litres/min |
Maximum Temperature | KN-025 and KN-025E models 93°C Other models 66°C |
KT-05, KE-05 and KV-05 models 93°C Other plastic models 66°C AB-05 and SB-05 models 82°C Other metallic models 100°C |
KT-10, KE-10 and KV-10 models 93°C Other plastic models 66°C AB-10 and SB-10 models 82°C Other metallic models 100°C |
Maximum Air Pressure | All models 6.8 bar | All models 8 bar | All models 8 bar |
Minimum Air Pressure | All models 1.3 bar | All models 1.2 bar | All models 1.2 bar |
Dry Lift Capacity | at 6.8 bar All models 5m |
at 8 bar Models with PTFE balls 3m Other models 4.5m |
at 8 bar Models with PTFE balls 3m Other models 4.5m |
Maximum Solids | 1.6mm | Standard solids 3.2 mm Optional Max-PassTM valves 9mm |
Standard solids 6.4 mm Optional Max-PassTM valves 19mm |
Air Supply | Inlet 1/4” BSP Female Airflow control valve supplied Outlet 1/4” BSP Female Muffler supplied |
Inlet 1/4” BSP Female Outlet 3/8” BSP Female Muffler supplied |
Inlet 1/4” BSP Female Outlet 3/8” BSP Female Muffler supplied |
Fluid Inlet/Discharge | 1/4” BSP | NPT compatible 1/2” BSP models | Plastic models 1” flange ANSI/DIN compatible Metallic models 1” BSP |
40mm Range | 50mm Range | 80mm Range | |
Capacity | Adjustable 0 to 492 litres/min | Adjustable 0 to 681 litres/min | Adjustable 0 to 965 litres/min |
Maximum Temperature | KT-15, KE-15 and KV-15 models 93°C Other plastic models 66°C AB-15 and SB-15 models 82°C Other metallic models 100°C |
KT-20, KE-20 and KV-20 models 93°C Other plastic models 66°C PB-20 and SB-20 models 82°C Other metallic models 100°C |
AN-30 82°C AL-30 66°C All other models 100°C |
Maximum Air Pressure | All models 8.2 bar | All models 8.2 bar | All models 8.5 bar |
Minimum Air Pressure | All models 1.3 bar | All models 1.3 bar | All models 1.3 bar |
Dry Lift Capacity | at 6.8 bar Models with PTFE balls 3m Other models 4.5m |
at 8 bar Models with PTFE balls 3m Other models 4.5m |
at 8 bar Models with PTFE balls 3m Other models 4.5m |
Maximum Solids | 6.4 mm | 6.4 mm | 11.1m |
Air Supply | Inlet 3/4” BSP Female Outlet 3/4” BSP Female Muffler supplied |
Inlet 3/4” BSP Female Outlet 3/4” BSP Female Muffler supplied |
Inlet 3/4” BSP Female Air flow control valve supplied Outlet 3/4” BSP Female Muffler supplied |
Fluid Inlet/Discharge | 40mm Flange | 51mm Flange | Metallic models 3” BSP Female |
Pastic Models | Weight | ||
6mm Range | NC-025 | Polypropylene / Geolast® | 2.3 kg |
6mm Range | NC-025E | Polypropylene / Santoprene® | 2.3 kg |
6mm Range | BK-025 | Polypropylene / PTFE | 2.3 kg |
6mm Range | RD-025 | Nylon / PTFE | 3.2 kg |
6mm Range | RD-025B | Nylon / Geolast® | 3.2 kg |
6mm Range | CN-025 | Conductive Nylon / PTFE | 3.2 kg |
6mm Range | CN-025B | Conductive Nylon / Geolast® | 3.2 kg |
6mm Range | KN-025 | PVDF/ PTFE | 3.2 kg |
6mm Range | KN-025E | PVDF/ Santoprene® | 3.2 kg |
15mm Range | PB-05 | Polypropylene / Geolast® | 4.1 kg |
15mm Range | PE-05 | Polypropylene / Santoprene® | 4.1 kg |
15mm Range | PT-05 | Polypropylene / PTFE | 4.1 kg |
15mm Range | PV-05 | Polypropylene / Viton® | 4.1 kg |
15mm Range | NB-05 | Nylon / Geolast® | 4.1 kg |
15mm Range | NT-05 | Nylon / PTFE | 4.1 kg |
15mm Range | NV-05 | Nylon / Viton® | 4.1 kg |
15mm Range | CT-05 | Conductive Nylon / PTFE | 5.4 kg |
15mm Range | CB-05 | Conductive Nylon / Geolast® | 5.4 kg |
15mm Range | CV-05 | Conductive Nylon / Viton® | 5.4 kg |
15mm Range | KT-05 | PVDF/ PTFE | 5.4 kg |
15mm Range | KE-05 | PVDF/ Santoprene® | 5.4 kg |
15mm Range | KV-05 | PVDF/ Viton® | 5.4 kg |
25mm Range | PB-10 | Polypropylene / Geolast® | 9.1 kg |
25mm Range | PE-10 | Polypropylene / Santoprene® | 9.1 kg |
25mm Range | PT-10 | Polypropylene / PTFE | 9.1 kg |
25mm Range | PV-10 | Polypropylene / Viton® | 9.1 kg |
25mm Range | KT-10 | PVDF/ PTFE | 13.7 kg |
25mm Range | KE-10 | PVDF/ Santoprene® | 13.7 kg |
25mm Range | KV-10 | PVDF/ Viton® | 13.7 kg |
40mm Range | PB-15 | Polypropylene / Geolast® | 20.8 kg |
40mm Range | PT-15 | Polypropylene / PTFE | 20.8 kg |
40mm Range | PE-15 | Polypropylene / Santoprene® | 20.8 kg |
40mm Range | PV-15 | Polypropylene / Viton® | 20.8 kg |
40mm Range | KT-15 | PVDF/ PTFE | 29.4 kg |
40mm Range | KE-15 | PVDF/ Santoprene® | 29.4 kg |
40mm Range | KV-15 | PVDF/ Viton® | 29.4 kg |
50mm Range | PB-20 | Polypropylene / Geolast® | 21.7kg |
50mm Range | PT-20 | Polypropylene / PTFE | 21.7kg |
50mm Range | PE-20 | Polypropylene / Santoprene® | 21.7kg |
50mm Range | PV-20 | Polypropylene / Viton® | 21.7kg |
50mm Range | KT-20 | PVDF / PTFE | 31.3 kg |
50mm Range | KE-20 | PVDF / Santoprene® | 31.3 kg |
50mm Range | KV-20 | PVDF / Viton® | 31.3 kg |
Metallic Models | Weight | ||
15mm Range | AB-05 | Aluminium / Geolast® | 4.5 kg |
15mm Range | AE-05 | Aluminium / Santoprene® | 4.5 kg |
15mm Range | AT-05 | Aluminium / PTFE | 4.5 kg |
15mm Range | AV-05 | Aluminium / Viton® | 4.5 kg |
15mm Range | SB-05 | 316 Stainless Steel / Geolast® | 8.6 kg |
15mm Range | SE-05 | 316 Stainless Steel / Santoprene® | 8.6 kg |
15mm Range | SP-05 | 316 Stainless Steel / PTFE | 8.6 kg |
15mm Range | SV-05 | 316 Stainless Steel / Viton® | 8.6 kg |
25mm Range | AB-10 | Aluminium / Geolast® | 10.5 kg |
25mm Range | AE-10 | Aluminium / Santoprene® | 10.5 kg |
25mm Range | AT-10 | Aluminium / PTFE | 10.5 kg |
25mm Range | AV-10 | Aluminium / Viton® | 10.5 kg |
25mm Range | SB-10 | 316 Stainless Steel / Geolast® | 20.4 kg |
25mm Range | SE-10 | 316 Stainless Steel / Santoprene® | 20.4 kg |
25mm Range | SP-10 | 316 Stainless Steel / PTFE | 20.4 kg |
25mm Range | SV-10 | 316 Stainless Steel / Viton® | 20.4 kg |
40mm Range | AB-15 | Aluminium / Geolast® | 27.2 kg |
40mm Range | AE-15 | Aluminium / Santoprene® | 27.2 kg |
40mm Range | AT-15 | Aluminium / PTFE | 27.2 kg |
40mm Range | AV-15 | Aluminium / Viton® | 27.2 kg |
40mm Range | SB-15 | 316 Stainless Steel / Geolast® | 60.0 kg |
40mm Range | SE-15 | 316 Stainless Steel / Santoprene® | 60.0 kg |
40mm Range | SP-15 | 316 Stainless Steel / PTFE | 60.0 kg |
40mm Range | SV-15 | 316 Stainless Steel / Viton® | 60.0 kg |
50mm Range | AB-20 | Aluminium / Geolast® | 27.7 kg |
50mm Range | AE-20 | Aluminium / Santoprene® | 27.7 kg |
50mm Range | AT-20 | Aluminium / PTFE | 27.7 kg |
50mm Range | AV-20 | Aluminium / Viton® | 27.7 kg |
50mm Range | SB-20 | 316 Stainless Steel / Geolast® | 60.0 kg |
50mm Range | SE-20 | 316 Stainless Steel / Santoprene® | 60.0 kg |
50mm Range | SP-20 | 316 Stainless Steel / PTFE | 60.0 kg |
50mm Range | SV-20 | 316 Stainless Steel / Viton® | 60.0 kg |
80mm Range | AL-30 | Aluminium / Urethane | 68.0 kg |
80mm Range | AL-30E | Aluminium / Santoprene® | 68.0 kg |
80mm Range | AL-30T | Aluminium / PTFE | 68.0 kg |
80mm Range | AL-30V | Aluminium / Viton® | 68.0 kg |
80mm Range | AN-30 | Aluminium / Nitrile | 68.0 kg |

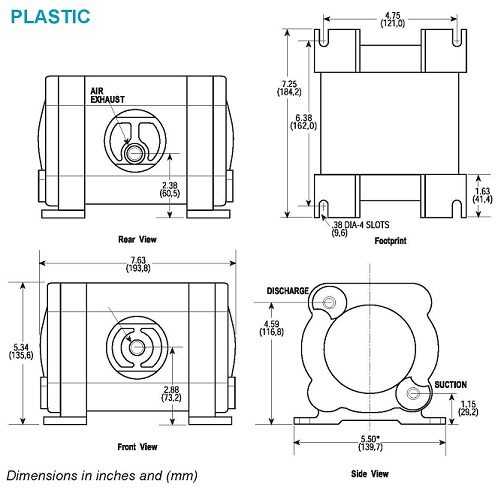

6mm Range Dimensions

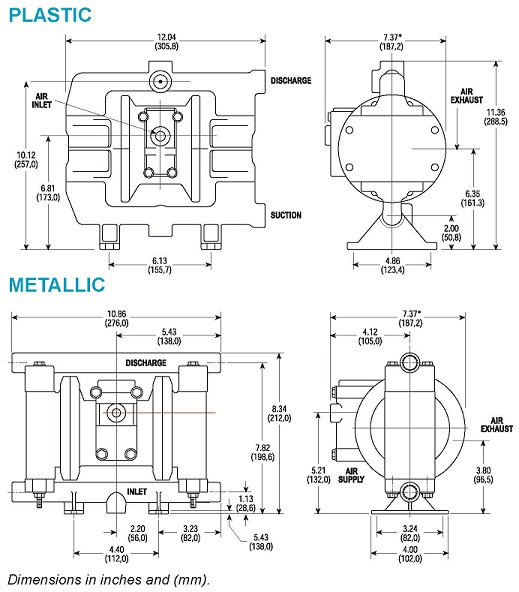

15mm Range Dimensions

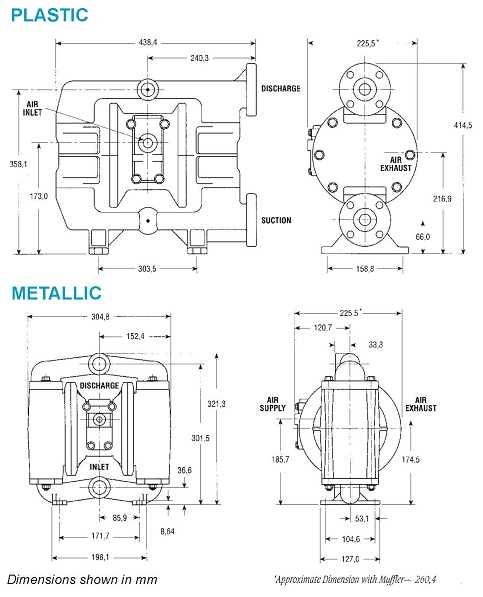

25mm Range Dimensions

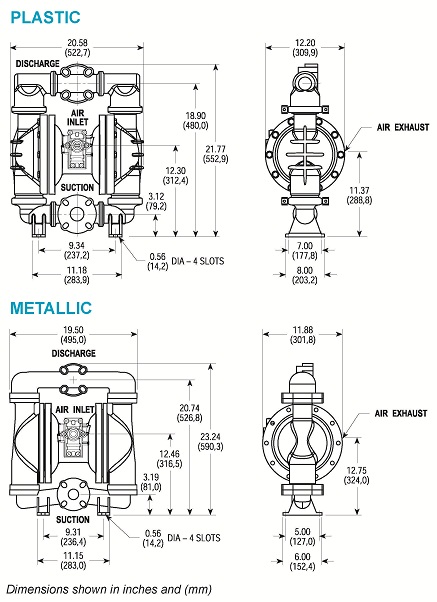

40mm Range Dimensions

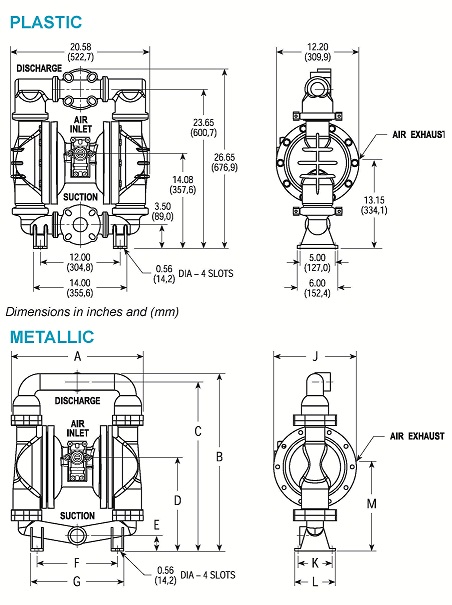

50mm Range Dimensions

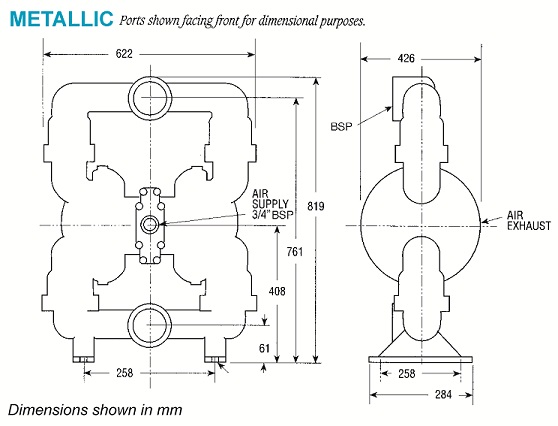

80mm Range Dimensions
