ESD Series - Bare Shaft Centrifugal Pumps

The Aquaplus ESD Series DIN Pumps are reliable end suction pumps manufactured to the international standard DIN 24255 (EN 733). Aquaplus ES Series DIN Pumps are suitable for a wide range of applications and industries.
MTP is proud to specialise in this range and carry extensive stock Australia wide.
Aquaplus ESD Series Pumps are also available in Long Coupled or Close Coupled configurations.

Extensive stock holdings Australia-wide
  • Features
  • Applications
  • Curves
  • Tech Specs
  • Back pull-out facility
  • Maximum operating pressure 1600kPa
  • Maximum speed varies between 1500 RPM and 3600 RPM dependant on pump size and method of drive
  • Maximum temperature with packed gland shaft sealing arrangement -10°C to 105°C
  • Cast metal casing with integrally cast feet
  • Re-usable casing o-rings
  • Shaft carried in grease lubricated bearings (oil lubrication available on request)
  • Cast iron bearing housing
  • Shaft sealing is standard as mechanical seal with stainless steel shaft sleeve (packed gland available on request)
  • Double shrouded impeller design
  • Replaceable wear rings fitted to all volutes
  • Removable support foot at drive end for greater rigidity
  • Pumps manufactured to the German Standard DIN 24255 (EN 733)

NOTE: Product information should be used as a guide only and should not be used for pump selection. For further information, please contact Malcolm Thompson Pumps on 1800 439 607.

  • Circulating of liquids
  • Condenser water
  • Heating water
  • Fire protection
  • Building services
  • Irrigation
  • HVAC
  • Commercial swimming pools

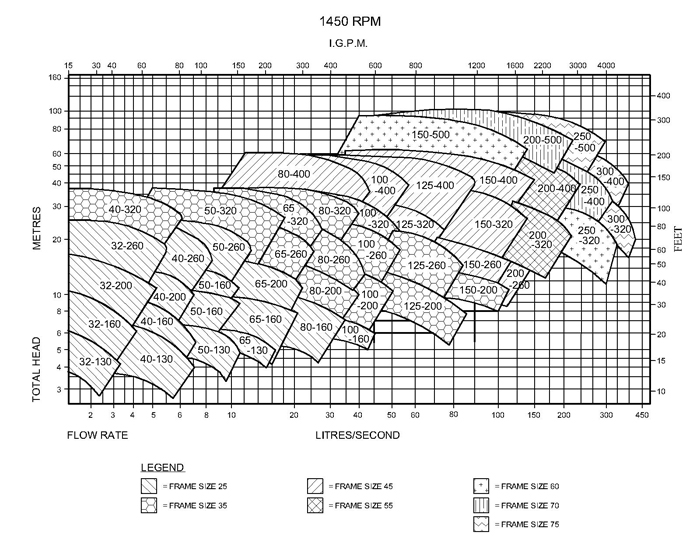

DIN Tombstone Curve 2900DIN Tombstone Curve 1450

Part Number Suction (mm) Discharge (mm) Max Impeller (Ø mm) Casing Material Impeller Material Frame Max Operating Speed (RPM)
ESDB-32-130-S1152 50 32 139 Cast iron Cast iron 25 3600
ESDB-32-160-S1152 50 32 174 Cast iron Cast iron 25 3600
ESDB-32-200-S1152 50 32 214 Cast iron Cast iron 25 3600
ESDB-32-260-S1152 50 32 264 Cast iron Cast iron 25 3600
ESDB-32-130-S1110 50 32 139 Cast iron Zinc free bronze 25 3600
ESDB-32-160-S1110 50 32 174 Cast iron Zinc free bronze 25 3600
ESDB-32-200-S1110 50 32 214 Cast iron Zinc free bronze 25 3600
ESDB-32-260-S1110 50 32 264 Cast iron Zinc free bronze 25 3600
ESDB-32-130-S1150 50 32 139 Cast iron Stainless steel 25 3600
ESDB-32-160-S1150 50 32 174 Cast iron Stainless steel 25 3600
ESDB-32-200-S1150 50 32 214 Cast iron Stainless steel 25 3600
ESDB-32-260-S1150 50 32 264 Cast iron Stainless steel 25 3600
ESDB-40-130-S1152 65 40 139 Cast iron Cast iron 25 3600
ESDB-40-160-S1152 65 40 174 Cast iron Cast iron 25 3600
ESDB-40-200-S1152 65 40 214 Cast iron Cast iron 25 3600
ESDB-40-260-S1152 65 40 264 Cast iron Cast iron 25 3600
ESDHB-40-320-S1152 65 40 329 Cast iron Cast iron 35H 2900
ESDB-40-320-S1152 65 40 329 Cast iron Cast iron 35 2300
ESDB-50-130-S1152 65 50 139 Cast iron Cast iron 25 3600
ESDB-50-160-S1152 65 50 174 Cast iron Cast iron 25 3600
ESDB-50-200-S1152 65 50 214 Cast iron Cast iron 25 3600
ESDB-50-260-S1152 65 50 264 Cast iron Cast iron 25 3600
ESDHB-50-320-S1152 65 50 329 Cast iron Cast iron 35H 2900
ESDB-50-320-S1152 65 50 329 Cast iron Cast iron 35 2300
ESDB-40-130-S1110 65 40 139 Cast iron Zinc free bronze 25 3600
ESDB-40-160-S1110 65 40 174 Cast iron Zinc free bronze 25 3600
ESDB-40-200-S1110 65 40 214 Cast iron Zinc free bronze 25 3600
ESDB-40-260-S1110 65 40 264 Cast iron Zinc free bronze 25 3600
ESDHB-40-320-S1110 65 40 329 Cast iron Zinc free bronze 35H 2900
ESDB-40-320-S1110 65 40 329 Cast iron Zinc free bronze 35 2300
ESDB-50-130-S1110 65 50 139 Cast iron Zinc free bronze 25 3600
ESDB-50-160-S1110 65 50 174 Cast iron Zinc free bronze 25 3600
ESDB-50-200-S1110 65 50 214 Cast iron Zinc free bronze 25 3600
ESDB-50-260-S1110 65 50 264 Cast iron Zinc free bronze 25 3600
ESDHB-50-320-S1110 65 50 329 Cast iron Zinc free bronze 35H 2900
ESDB-50-320-S1110 65 50 329 Cast iron Zinc free bronze 35 2300
ESDB-40-130-S1150 65 40 139 Cast iron Stainless steel 25 3600
ESDB-40-160-S1150 65 40 174 Cast iron Stainless steel 25 3600
ESDB-40-200-S1150 65 40 214 Cast iron Stainless steel 25 3600
ESDB-40-260-S1150 65 40 264 Cast iron Stainless steel 25 3600
ESDHB-40-320-S1150 65 40 329 Cast iron Stainless steel 35H 2900
ESDB-40-320-S1150 65 40 329 Cast iron Stainless steel 35 2300
ESDB-50-130-S1150 65 50 139 Cast iron Stainless steel 25 3600
ESDB-50-160-S1150 65 50 174 Cast iron Stainless steel 25 3600
ESDB-50-200-S1150 65 50 214 Cast iron Stainless steel 25 3600
ESDB-50-260-S1150 65 50 264 Cast iron Stainless steel 25 3600
ESDHB-50-320-S1150 65 50 329 Cast iron Stainless steel 35H 2900
ESDB-50-320-S1150 65 50 329 Cast iron Stainless steel 35 2300
ESDB-65-130-S1152 80 65 139 Cast iron Cast iron 25 3600
ESDB-65-160-S1152 80 65 174 Cast iron Cast iron 25 3600
ESDB-65-200-S1152 80 65 214 Cast iron Cast iron 25 3600
ESDB-65-260-S1152 80 65 264 Cast iron Cast iron 35 3600
ESDHB-65-320-S1152 80 65 329 Cast iron Cast iron 35H 2900
ESDB-65-320-S1152 80 65 329 Cast iron Cast iron 35 2300
ESDB-65-13-S1110 80 65 139 Cast iron Zinc free bronze 25 3600
ESDB-65-160-S1110 80 65 174 Cast iron Zinc free bronze 25 3600
ESDB-65-200-S1110 80 65 214 Cast iron Zinc free bronze 25 3600
ESDB-65-260-S1110 80 65 264 Cast iron Zinc free bronze 35 3600
ESDHB-65-320-S1110 80 65 329 Cast iron Zinc free bronze 35H 2900
ESDB-65-320-S1110 80 65 329 Cast iron Zinc free bronze 35 2300
ESDB-65-130-S1150 80 65 139 Cast iron Stainless steel 25 3600
ESDB-65-160-S1150 80 65 174 Cast iron Stainless steel 25 3600
ESDB-65-200-S1150 80 65 214 Cast iron Stainless steel 25 3600
ESDB-65-260-S1150 80 65 264 Cast iron Stainless steel 35 3600
ESDHB-65-320-S1150 80 65 329 Cast iron Stainless steel 35H 2900
ESDB-65-320-S1150 80 65 329 Cast iron Stainless steel 35 2300
ESDB-80-160-S1152 100 80 174 Cast iron Cast iron 25 3600
ESDB-80-200-S1152 100 80 214 Cast iron Cast iron 35 3600
ESDB-80-260-S1152 100 80 264 Cast iron Cast iron 35 3600
ESDHB-80-320-S1152 100 80 329 Cast iron Cast iron 35H 2900
ESDB-80-320-S1152 100 80 329 Cast iron Cast iron 35 1800
ESDB-80-400-S1152 100 80 409 Cast iron Cast iron 40 1800
ESDB-80-160-S1110 100 80 174 Cast iron Zinc free bronze 25 3600
ESDB-80-200-S1110 100 80 214 Cast iron Zinc free bronze 35 3600
ESDB-80-260-S1110 100
