Aquaplus - MS Series Cartridge Seals

The Aquaplus cartridge seal is a robust, general purpose, bi-directional, multi-spring cartridge mechanical seal designed for the sealing requirements of rotary shaft equipment.

The seal is an hydraulically balanced cartridge seal with protected multi-springs and operates with cooler running faces, longer life and at higher temperatures.

  • Features
  • Applications
  • Tech Specs
  • Brochure
  • cartridge design
  • easy installation
  • balanced seal faces
  • springs isolated from the process liquid
  • static o-ring pump shaft/sleeve
  • no fretting
  • full face gland
  • water
  • chemicals
  • oils
  • fuel oils
  • slurries
  • sludges

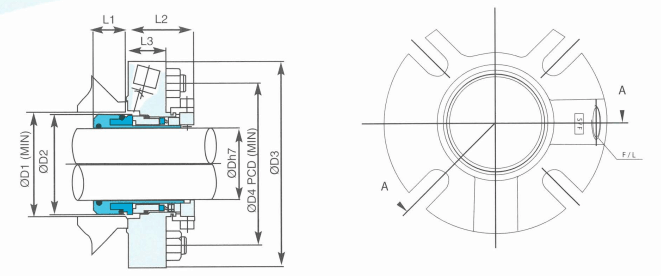

Series Diagrams Ms

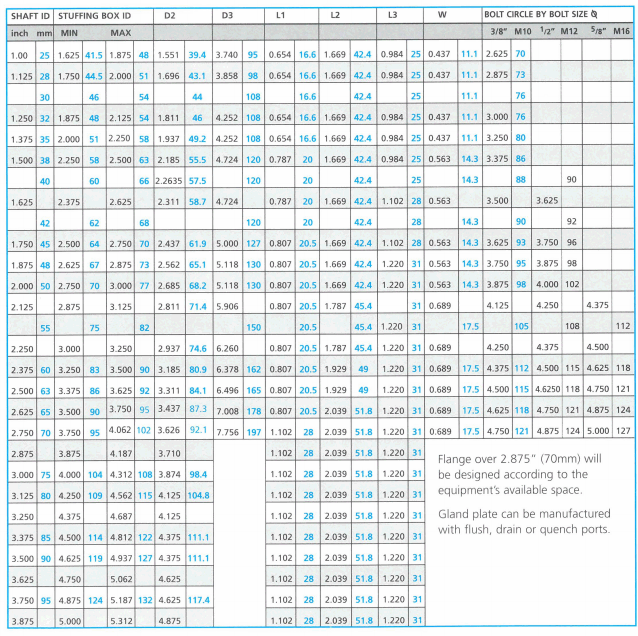

MS Tech
