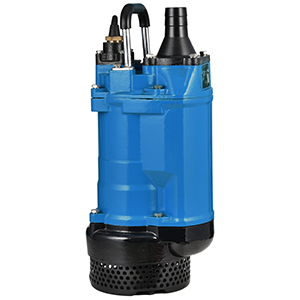

SD Series - 415V Dewatering
The Aquaplus Submersible Dewatering Pump (SD) Series 415V pumps are used exclusively in applications such as construction dewatering and sump drainage. Aquaplus Submersible Dewatering Pumps are designed for continuous unattended operation.
Print
- Features
- Applications
- Curves
- Tech Specs
- Dimensions
- Downloads
- Cast iron casing, ductile iron suction cover and chrome impeller
- Built in oil lifter enhances sealing life and performance
- Dual silicon carbide mechanical seals in oil bath
- Anti wicking protection
- Pump can run in horizontal and vertical configurations
- Pump can run in “snore mode”
NOTE: Product information should be used as a guide only and should not be used for pump selection. For further information, please contact Malcolm Thompson Pumps on 1800 439 607.
- General construction work
- Civil engineering
- Deep well applications
Product Disclaimer: The product information and specifications on this website should be used as a guide only. The customer is responsible for ensuring the capacity and performance of the goods are sufficient and suitable for the customer’s purpose. Malcolm Thompson Pumps takes no responsibility for errors or omissions in product features or specifications.
Dimensions in mm
| Part number |
Discharge (mm) | Power (kW) | Voltage (V) | Cable (m) | Max flow (L/s) | Shut-off head (m) | Weight (kg) | Max solid (mm) | Rated current A (415 V) |
| SD-50-52-1.5T2-20M-O | 50 | 1.5 | 415 | 20 | 6.6 | 22 | 30 | 8.5 | 3.3 |
| SD-80-52-1.5T2-20M-O | 80 | 1.5 | 415 | 20 | 11.2 | 14 | 30 | 8.5 | 3.3 |
| SD-50-52-2.2T2-20M-O | 50 | 2.2 | 415 | 20 | 8.2 | 26 | 34 | 8.5 | 5.6 |
| SD-80-52-2.2T2-20M-O | 80 | 2.2 | 415 | 20 | 16 | 18 | 34 | 8.5 | 5.6 |
| SD-50-52-3.7T2-20M-O | 50 | 3.7 | 415 | 20 | 7.5 | 36.5 | 56 | 8.5 | 7.3 |
| SD-80-52-3.7T2-20M-O | 80 | 3.7 | 415 | 20 | 16 | 27 | 56 | 8.5 | 7.3 |
| SD-100-52-3.7T2-20M-O | 100 | 3.7 | 415 | 20 | 24.1 | 18 | 56 | 8.5 | 7.3 |
| SD-80-52-5.5T2-20M-O | 80 | 5.5 | 415 | 20 | 22 | 33 | 71 | 8.5 | 10.5 |
| SD-100-52-5.5T2-20M-O | 100 | 5.5 | 415 | 20 | 30.5 | 23 | 71 | 8.5 | 10.5 |
| SD-100-52-7.5T2-20M-O | 100 | 7.5 | 415 | 20 | 21.4 | 39 | 96 | 8.5 | 13.8 |
| SD-150-52-7.5T2-20M-O | 150 | 7.5 | 415 | 20 | 36 | 33 | 98 | 20 | 13.8 |
| SD-100-52-11T2-20M-O | 100 | 11 | 415 | 20 | 24.1 | 47 | 132 | 8.5 | 20.5 |
| SD-150-52-11T2-20M-O | 150 | 11 | 415 | 20 | 40 | 32.5 | 135 | 20 | 20.5 |
| Agitator | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| SDA-80-52-4.0T2-20M-O | 80 | 4 | 415 | 20 | 25 | 15 | 105 | 30 | 9.5 |
| SDA-100-52-6.0T2-20M-O | 100 | 6 | 415 | 20 | 39 | 17 | 145 | 30 | 13 |
| SDA-150-52-9.0T2-20M-O | 150 | 9 | 415 | 20 | 53 | 23 | 170 | 30 | 18 |
^Agitator versions (SDA) available for light slurry applications such as pumping concrete, bentonite and pulp.
| Part Number | D | H | A | A1 | B | B1 | W1 | d |
|
SD-50-52-1.5T2-20M-O
|
218 | 478 | 235 | 173 | 509 | 401 | 120 | 50 |
| SD-80-52-1.5T2-20M-O | 218 | 478 | 235 | 173 | 509 | 401 | 120 | 80 |
| SD-50-52-2.2T2-20M-O | 218 | 511 | 237 | 173 | 537 | 432 | 123 | 50 |
| SD-80-52-2.2T2-20M-O | 218 | 511 | 237 | 173 | 537 | 432 | 123 | 80 |
| SD-50-52-3.7T2-20M-O | 252 | 637 | 283 | 208 | 627 | 504 | 150 | 50 |
| SD-80-52-3.7T2-20M-O | 258 | 630 | 287 | 208 | 627 | 507 | 150 | 80 |
| SD-100-52-3.7T2-20M-O | 258 | 630 | 287 | 208 | 642 | 507 | 150 | 100 |
| SD-80-52-5.5T2-20M-O | 257 | 610 | 295 | 235 | 678 | 554 | 150 | 80 |
| SD-100-52-5.5T2-20M-O | 257 | 610 | 295 | 235 | 693 | 554 | 150 | 100 |
| SD-100-52-7.5T2-20M-O | 310 | 687 | 332 | 240 | 764 | 626 | 190 | 100 |
| SD-150-52-7.5T2-20M-O | 310 | 687 | 332 | 240 | 790 | 626 | 190 | 150 |
| SD-100-52-11T2-20M-O | 330 | 705 | 363 | 260 | 816 | 650 | 185 | 100 |
| SD-150-52-11T2-20M-O | 330 | 705 | 363 | 260 | 826 | 650 | 185 | 150 |
| SDA-80-52-4.0T2-20M-O | 326 | 766 | 350 | 260 | 786 | 666 | 250 | 80 |
| SDA-100-52-6.0T2-20M-O | 373 | 720 | 415 | 305 | 823 | 662 | 263 | 100 |
| SDA-150-52-9.0T2-20M-O | 400 | 768 | 434 | 324 | 872 | 712 | 262 | 150 |
