SDG Series – Submersible Dewatering Pumps 240V

Aquaplus SDG Series 240V pumps are suitable for applications such as sea water, cellar or basement drainage, storm water drainage, pool circulation or aquaculture.

Send An Enquiry
SDG Series – Submersible Dewatering Pumps 240V
  • Features
  • Applications
  • Curves
  • Tech Specs
  • Dimensions
  • Single phase 240V pump
  • Small robust pump
  • Automatic motor protection
  • Double mechanical seal in oil bath
  • Reinforced polymer / non-corrosive housing
  • Manual / Auto vertical float
  • Suitable for sea water
  • Cellar or basement drainage
  • Storm water drainage
  • Tank / pool / pond pump out /circulation
  • Fish breeding / aquaculture
  • Emergency pump out down to 2mm (SDG-25-2A-.1S2-10AVP-O)

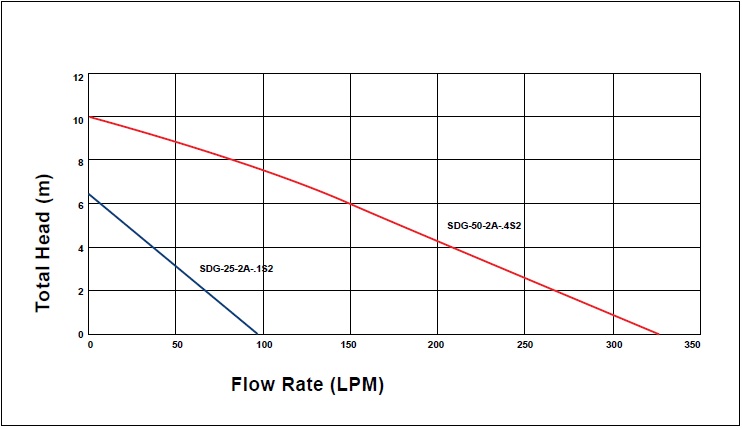

aquaplus-sdg-series-curves

Part Number Discharge (mm) Power (kW) Voltage (V) Cable (m) Max Flow (L/s) Shut-Off Head (m) Pump Weight (kg) Max Solid (mm) Rated Current A (415 V)
Automatic / Manual
SDG-25-2A-.1S2-10AVP-O 25 0.1 230 10 95 6.5 4.1 2 1.01
SDG-50-2A-.4S2-10AVP-O 50 0.4 220 10 315 10 9.1 2.5 3.4
Part Number Dimensions (mm)
D h A B C h1 h2 d C.W.L Manual C.W.L Auto
Automatic / Manual
SDG-25-2A-.1S2-10AVP-O 139 286 232 242 106 38 140 19/25 2 145
SDG-50-2A-.4S2-10AVP-O 190 390 242 397 86.5 102 230 50 60 233

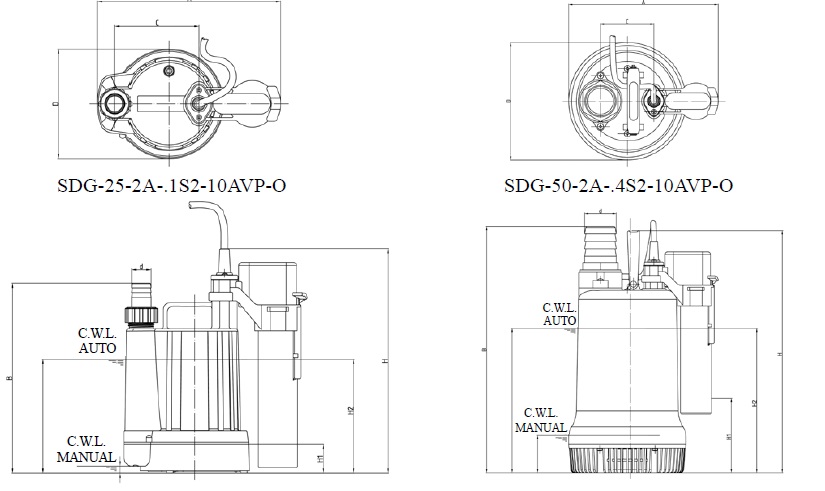

aquaplus-sdg-series-dimensions
