COMBIFLUX FP 314

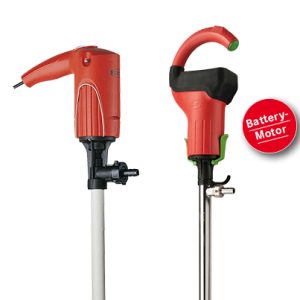

Pump with removable collector motor for main supply or rechargeable battery motor
- Sealless in the liquid area
- Can transfer from narrow-necked and containers difficult to access
- Minimal force required to change drums
- One battery charge is enough to empty 17 x 200 l drums or 3 IBCs
- Available with battery motor or 240-volt motor
- Description
- Applications
- Tech Specs
- Characteristics
- Spare Parts
- Downloads
The small battery drum pump COMBIFLUX FP 314 is suitable for pumping small quantities from containers such as cans or up to 200 litre drums. The IP 44 is protected against splash water and therefore ideally suited for outdoor use. The small diameter of the outer tube allows pumping even out of narrow openings. The sealless COMBIFLUX FP 314 is designed on a modular basis and can either be operated with the commutator motor FEM 3070 or the battery motor FBM-B 3100. This way several pumps can be operated in series with one motor. The intelligent cooling concept of the motor with double-walled housing ensures optimum air circulation and protects against the penetration of aggressive vapors.
- Acids and alkalis
- Liquid fertilizers
- Cleaning solutions
- Cleaning solutions
- Cleaning solutions
Technical Data Sheet – with commutator battery.pdf
Technical Data Sheet – with commutator motor.pdf
Dimensional Drawing F314PP-32+25_1213.pdf
Dimensional Drawing F314S-28_0312.pdf
Dimensional Drawing DFP314-PP_PVDF+FBM-B_3100_0115.pdf
Dimension Drawing FP314-PP-PVDF+FEM-3070_0115.pdf
• Flow rate: min. 12 l/min1 – max. 60 l/min1
• Delivery head: max. 8,5 mwc1
• Viscosity: min. 1 mPas – max. 250 mPas1
• Outer tube diameter: min. 25 mm2 – max. 32 mm2
• Immersion length: 500, 700, 1000, 1200
• Materials outer tube: Polypropylene, Polyvinylidene fluoride, Stainless steel
• Media / Fluids: Acids, Alkalis, Aqueous salt solutions
• Seal: sealless
• Container: 200 l drums, small containers, Hobbocks
