COMBIFLUX

For smaller quantities

  • Motor easy to remove
  • Several pumps can be operated in series with one motor
  • Suitable for filling smaller quantities
  • Low weight


  • Description
  • Applications
  • Characteristics
  • Downloads

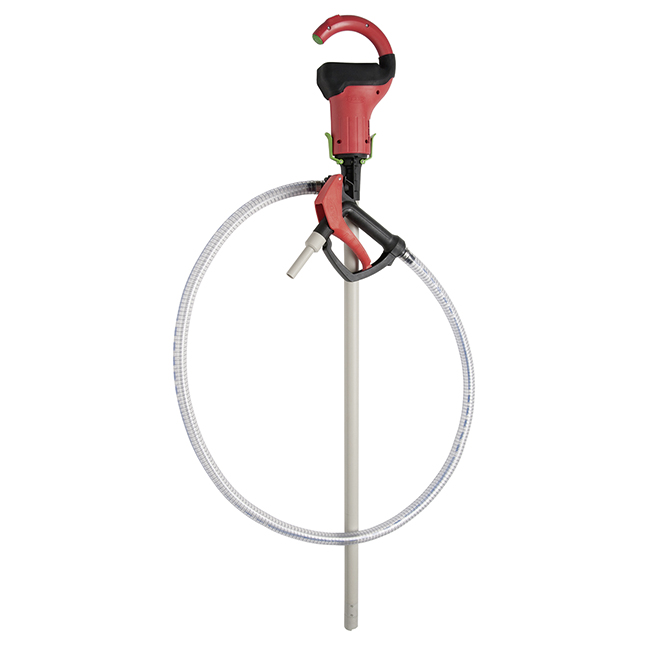

The small drum pump COMBIFLUX with removable motor FBM-B 3100 is particularly suitable for pumping small quantities from containers such as cans or up to 200 litre drums. The small diameter of the outer tube allows pumping even out of narrow openings. The pump kits consist of a pump with motor, 1,5 m hose and hand nozzle.

• Acids and alkalis
• Fertilizer solutions
• Cleaning solutions
• Water
• Concentrated nitric acid
• Sulphuric
• Acetic acid

• Flow rate: max. 21 l/min1
• Delivery head: max. 5,0 mwc
• Viscosity: min. 1 mPas – max. 250 mPas
• Outer tube diameter: min. 25 mm – max. 32 mm
• Immersion length: 700, 1000
• Materials outer tube: Polypropylene
• Media / Fluids: Acids, Alkalis, Aqueous salt solutions
• Seal: sealless
• Container: 200 l drums, Small containers, Hobbocks
