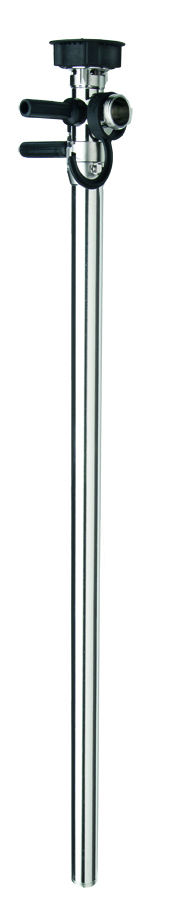

F 425 / FP 425

With the Drum pump F/FP 425 there is less than 0.05 l residual amount left in a 200L drum, so maximum 0.02 %. The pump has an integrated backflow valve that is easy to close before taking the pump out of the container. The backflow of the medium in the pump is prevented. This makes optimum use of especially expensive media possible and saves additional cleaning and disposal costs when handling problematic liquids. The pump is available in stainless steel, polypropylene and hastelloy C. In stainless steel and hastelloy C the pump F/FP 425 can also be used in hazardous areas.

Outer tube polypropylene:
Hydrochloric acid, boric acid, sulfuric acid, citric acid, lactic acid, phthalic acid, sodium hydroxide, potassium hydroxide, ammonia water

Outer tube material stainless steel:
Petroleum, diesel, heating oil, hydraulic oil, machine oil, engine oil, gasoline, formic acid (85 %), ethyl glycol, petroleum, “MEK (methyl ethyl ketone = butanone), octane, ethanol, methanol, butanol, acetan, toluene, isobutanol, propanol, xylene, urea solutions, naphtha, diesel
Outer tube Hastelloy C:
Gasoline, formic acid (85%), ethylene glycol, petroleum, MEK (methyl ethyl ketone = butanone), octane

Dimensional Drawing F 425 HC.pdf

Dimensional Drawing  F 425 PP 066.pdf

Dimensional Drawing  F 425 S_066.pdf

Dimensional Drawing FP425-Ex-S 0513.pdf

Technical Data Sheet.pdf

• Flow rate: max. 120 l/min1
• Delivery head: max. 26 mwc2
• Viscosity: min. 1 mPas – max. 1200 mPas2
• Outer tube diameter: min. 41 mm3 – max. 50 mm3
• Immersion length: 700, 1000, 1200
• Materials outer tube: hastelloy C, Polypropylene, Stainless steel
• Media / Fluids: Acids, Alkalis, Fuels, Highly flammable media, Petroleum products, Solvents
• Seal: with mechanical seal
• Container: 1000 l IBC, 200 l drums

Drum pump_F 425_PP.pdf

Drum pump_FP 425 Ex S

Drum and Container pumps Brochure.pdf

EC- Declaration of Conformity Drum Pumps.pdf

EC-Type-Examination Certificate.pdf

Operating Instructions.pdf
