F 430 TR

Drum pump for horizontal use

  • Provides highest flexibility in installation and mobility
  • For containers with floor drain
  • Can be integrated into pipe systems
  • Provides highest flexibility in installation and mobility

  • Description
  • Applications
  • Tech Specs
  • Characteristics
  • Spare Parts
  • Downloads

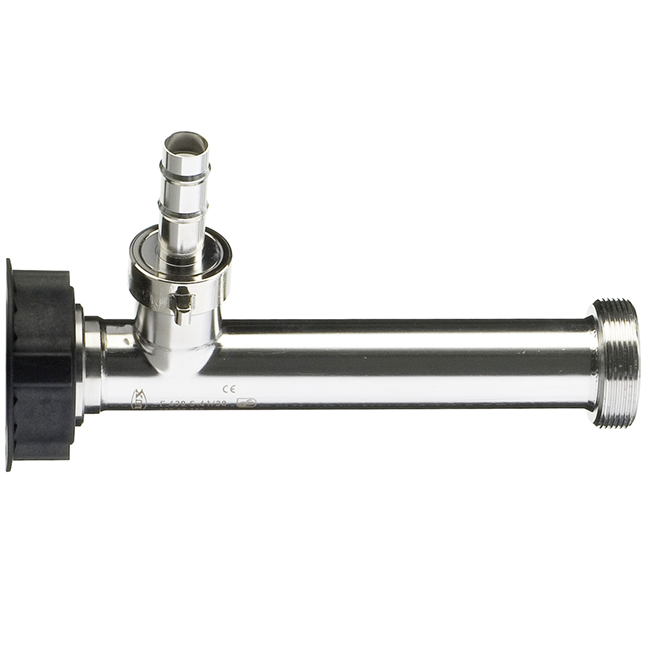

The horizontal Drum and container pump F 430 TR is ideal for conveying media from IBCs, tanks and other containers with low-level outlet. E.g. if a tank is not accessible from the top or if the spatial conditions do not allow the use of a vertical pump. The pump can be easily and quickly taken apart in its two main components for cleaning. The pump is available in stainless steel or polypropylene. The stainless steel version can also be used in hazardous areas

Outer tube material polypropylene:
Hydrochloric acid, boric acid, sulfuric acid, citric acid, lactic acid, phthalic acid, sodium hydroxide, potassium hydroxide, ammonia water

Outer tube material stainless steel:
Petroleum, diesel, heating oil, hydraulic oil, machine oil, motor oil, gasoline, formic acid (as from 85 %), ethyl glycol, petroleum, “MEK (methyl ethyl ketone = butanone), octane, ethanol, methanol, butanol, acetan, toluene, isobutanol, propanol, xylene, urea solutions, white spirit, diesel

• Flow rate: max. 240 l/min1
• Delivery head: max. 30 mwc2
• Viscosity: min. 1 mPas – max. 1200 mPas2
• Outer tube diameter: min. 40 mm – max. 41 mm
• Length: 200
• Materials outer tube: Stainless steel, Polypropylene
• Media / Fluids: Fuels, Alkalis, Highly flammable media, Solvents, Petroleum products, Acids
• Seal: with mechanical seal
• Container: 1000 l IBC, Container with floor drain
