F 706

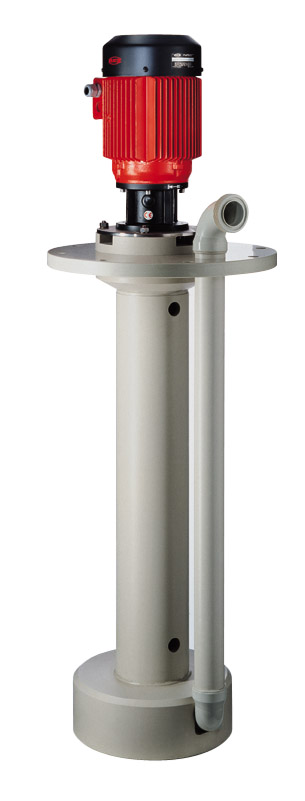

Stationary circulating and filter pump with impeller for delivery rates up to 1233 l/min
- Suitable for continuous use
- Available in four different sizes for different power ranges
- Sleeve bearing lubricated with medium for immersion lengths up to 2.000 mm
- Smooth running of the pump due to robust PP coated pump shaft and a thick-walled support tube
- Description
- Applications
- Tech Specs
- Characteristics
- Appropriate Motors
- Spare Parts
- Downloads
For pumping chemically aggressive fluids throughout the chemical industry and process engineering, as well as wherever acids and alkalis or chemically contaminated fluids with or without solids are to be pumped or circulated safely and economically.
• Electroplating baths with e.g. copper sulphate, chromium, zinc electrolytes
• Chemically aggressive fluids such as inorganic and organic acids, alkalis, salts
Dimensional Drawings F706 2PP 230 0.pdf
Dimensional Drawing F706PP1135 pressure flange.pdf
Dimensional Drawing F706PP1 135 special flange.pdf
Dimensional Drawing F706PP1 135 square flange.pdf
Dimensional Drawing F706PP1 135 Standard.pdf
Dimensional Drawing F706PP1 185 pressure flange.pdf
Dimensional Drawing F706PP1 185 Standard.pdf
Dimensional Drawing F706PP1 230.pdf
Dimensional Drawing F706PP1 230 pressure flange.pdf
Dimensional Drawing F706PP1-230 pressure flange.pdf
Dimensional Drawing F706PP1 230 Standard.pdf
Dimensional Drawing F706PP1 350 Standard.pdf
Dimensional Drawing F706PP1 230.pdf
Dimensional Drawing F706PP1 230 pressure flange.pdf
Dimensional Drawing F706PP1 230 special flange pressure flange.pdf
• Flow rate: max. 1233 l/min1
• Delivery head: max. 33 mwc1
• Viscosity: min. 1 mPas – max. 150 mPas1
• Diameter pump housing: max. 417 mm2
• Diameter mounting flanges: max. 500 mm2
• Materials outer tube: Polypropylene
• Media / Fluids: Acids, Aggressive media, Alkalis
• Seal: Sealless in the liquid area
• Container: Tanks > 1000 liters
Please contact one of our expert advisors or contact person in the office for an optimal motor dimensioning.
