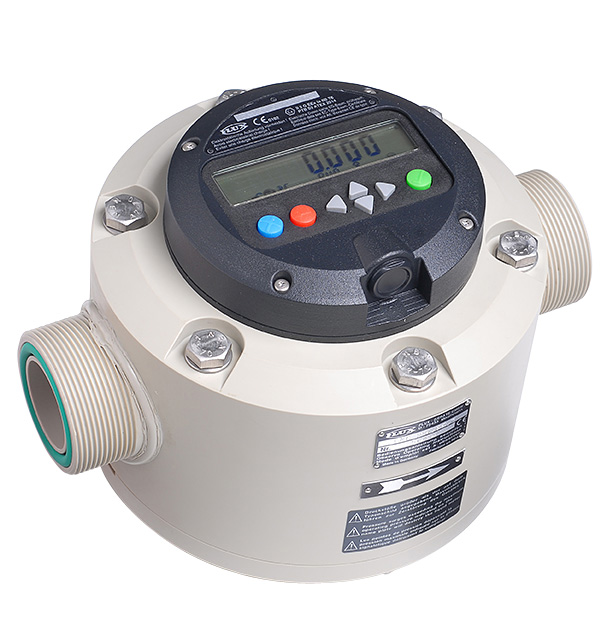

FMC 250

For plant engineering

  • Insensitive to small solids
  • Easy handling
  • No mains connections required
  • High resistancy
  • Easy assembly on pump

  • Description
  • Applications
  • Tech Specs
  • Characteristics
  • Spare Parts
  • Downloads

FLUX flow meters FMC 250, built to the nutating disc principle (FMC), are designed for stationary use in e.g. piping systems. With the evaluation unit FLUXTRONIC® filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and highest safety. In automatic mode it is possible to output a signal for control purposes with the evaluation unit and the use of a switching amplifier. This way e.g. motor and/or magnetic valve and the most different processes can be controlled.

Housing material PP:
Battery acid, formic acid, ammonia, formic acid, boric acid, brake fluid, calcium chloride, acetic acid, ferric-III- chloride, photo developers, glycol, mineral oil, sodium hydroxide, phosphoric acid, hydrochloric acid, sulfuric acid to 60 % tartaric acid, zinc chloride, citric acid

Housing material PVDF:
Hydrobromic acid, chloric acid, carbonic acid, hydrofluoric acid, potassium bromide, sodium hypochlorite, paraffin emulsion, nitric acid to 75 % sulfuric acid to 98 %, trichlorobenzene, hydrogen peroxide

• Flow rate: min. 25 l/min – max. 250 l/min
• Filling accuracy: +/- 1 %
• Operating pressure: max. 6 bar
• Size of solids: max. 1,5 mm
• Viscosity: min. 1 mPas – max. 2500 mPas
• Housing Materials: Polypropylene, Polyvinylidene fluoride
• Media / Fluids: Acids, Alkalis
