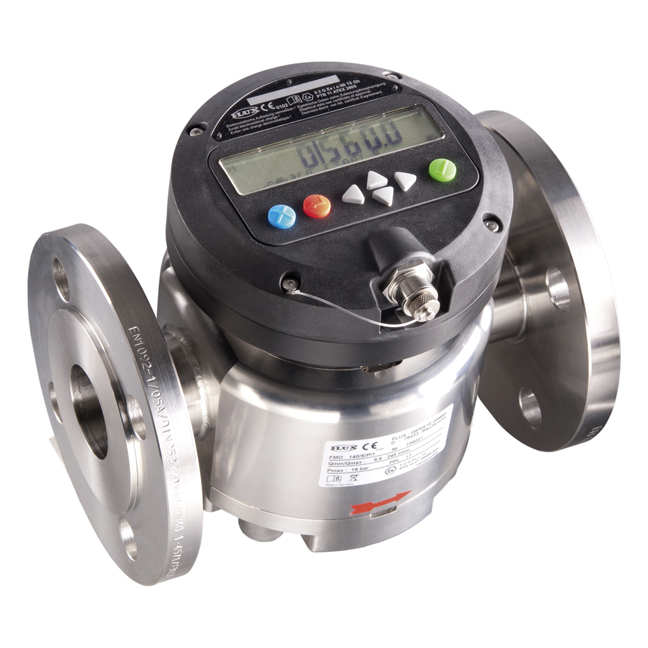

FMO 150

Flow meter for 15 – 380 l/min

  • Very precise dosing possible
  • High resistancy
  • Wide range of viscosities can be covered
  • Available in Version with FDA CFR 21s
  • Can be displayed in liter, gallons or kilogram
  • Description
  • Applications
  • Tech Specs
  • Characteristics
  • Spare Parts
  • Downloads

The flow meter FMO 150 built according to the oval rotor design is suitable for measuring pure, thin to highly viscous media. With the evaluation unit FLUXTRONIC® filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and highest safety. In automatic mode it is possible to output a signal for control purposes with the evaluation unit and the use of a switching amplifier. This way e.g. motor and / or magnetic valve and the most different processes can be controlled.

• Gasoline
• Solvents
• Not self-lubricating media

• Flow rate: min. 15 l/min – max. 380 l/min
• Filling accuracy: +/- 0,5 %
• Operating pressure: max. 16 bar1
• Viscosity: min. 1 mPas – max. 500.000 mPas2
• Housing Materials: Aluminium, Stainless steel
• Media / Fluids: Acids, Alkalis, Fuels, Highly flammable media, Petroleum products, Solvents
