For Food and Pharma up to 25.000 mPas

with eccentric worm-drive pump

  • Positive displacement pump
  • Suitable for shear-sensitive media
  • Appropriate for food contact acc. to EC 1935/2004 and FDA CFR 21
  • Lightweight and mobile use
  • Description
  • Applications
  • Characteristics
  • Downloads

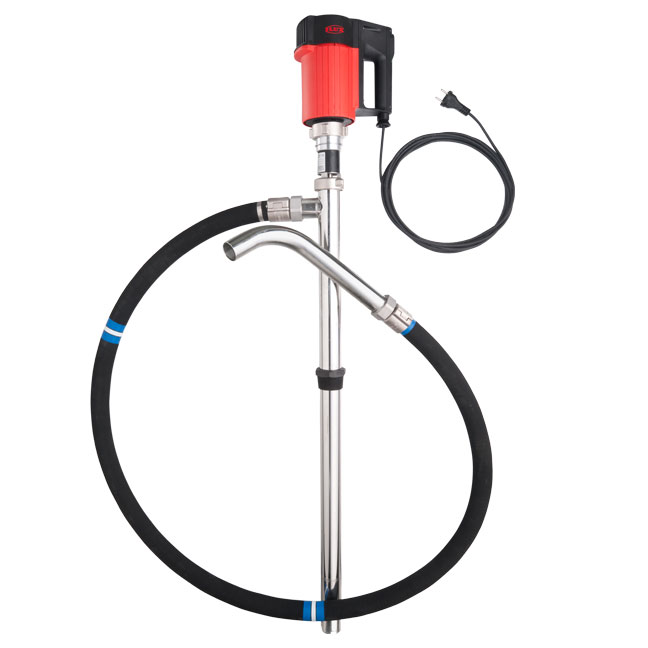

Pre-assembled eccentric worm-drive pump kit with planetary gear for food and pharma to pump thin to medium viscous media up to 25.000 mPas out of 200-l drums and IBCs. The pump is specially designed to meet the specific requirements of the food, cosmetic and pharmaceutical industries and works with little turbulences, at constant pressure and ensures a smooth, pulsation-free pumping. Comprising Eccentric worm-drive pump F 560 GS in 1000 or 1200 mm, Commutator motor F 458-1, Stator housing, Stator, Hose, Discharge spout, Hose connection and compression gland.

• Pharmaceutical ingredients
• Cosmetic products

• Flow rate: max. 19 l/min1
• Delivery head: max. 40 mwc1
• Viscosity: min. 1 mPas – max. 25000 mPas
• Outer tube diameter: max. 50 mm
• Immersion length: 1000, 1200
• Materials outer tube: Stainless steel
• Seal: closed mechanical seal
• Container: 1000 l IBC, 200 l drums
