For high flammable media
- No seal in the liquid area
- Relief openings provide the same fluid level inside the pump compared to the drum content
- Low wear and maintenance
- Non-sensitive to dry-running
- Description
- Applications
- Characteristics
- Downloads

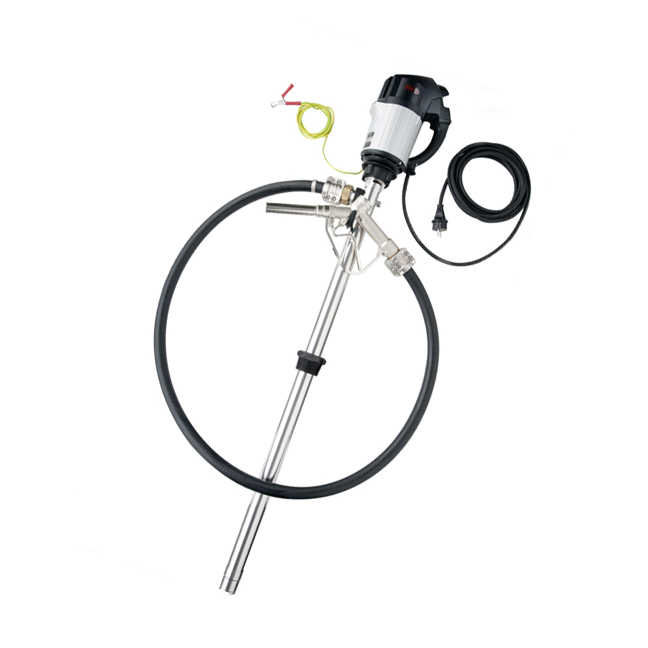

Pre-assembled pump kit to pump highly flammable media out of 200 l drums or IBCs. Comprising drum pump F 424, outer tube in stainless steel, hose, hand nozzle and compression gland. As drive either the commutator motor F 460 or compressed-air motor F 416 are available.
• Acetone
• Petrol
• Butanol
• Ethanol
• Toluene
• Flow rate: max. 50 l/min1
• Delivery head: max. 13 mwc
• Viscosity: min. 1 mPas – max. 800 mPas
• Outer tube diameter: max. 43 mm
• Immersion length: 1000, 1200
• Materials outer tube: Stainless steel
• Media / Fluids: Highly flammable media, Petroleum products, Solvents
• Seal: sealless
• Container: 1000 l IBC, 200 l drums
