For Universal Applications

JUNIORFLUX for AdBlue®

  • Pump with mechanical seal
  • Universally and flexibly applicable
  • Easy to clean as no medium can get into to inner tube
  • Steel core in the inner tube prevents longitudinal changes at high or low temperatures
  • Ideal for liquids that crystallize or harden



  • Description
  • Applications
  • Characteristics
  • Downloads

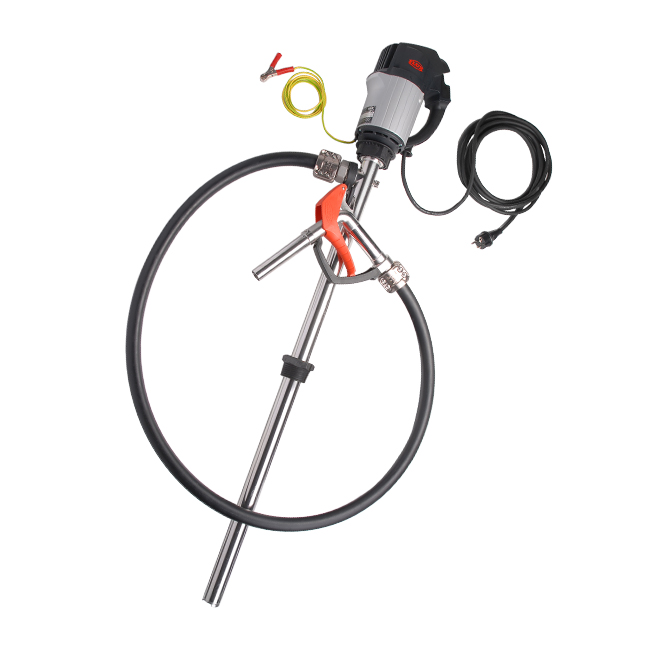

Pre-assembled pump kit to pump different media out of 200 L drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). Comprising drum pump F 430, outer tube in stainless steel, hose, hand nozzle and compression gland. Driven either by commutator motor F 460 or compressed-air motor F 416.

• Cosmetic products
• Pharmacy
• Colours and varnishes
• Cleaning agents
• Disinfectants

• Flow rate: max. 50 l/min1
• Delivery head: max. 13 mwc
• Viscosity: min. 1 mPas – max. 800 mPas
• Outer tube diameter: max. 41 mm
• Immersion length: 1000, 1200
• Materials outer tube: Stainless steel
• Media / Fluids: Fuels, Highly flammable media, Petroleum products, Solvents
• Seal: with mechanical seal
• Container: 1000 l IBC, 200 l drums
