Motor F 458

The robust drum pump motor

  • Compact design
  • Very robust housing in aluminium
  • With special corrosion-resistant painting
  • Very low noise level
  • Description
  • Tech Specs
  • Characteristics
  • Spare Parts
  • Downloads

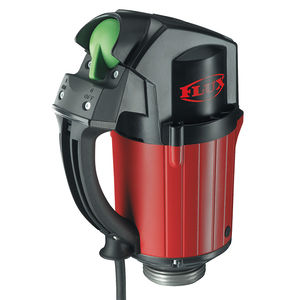

The motor F 458 is a compact commutator motor, has an extremely tough housing with double skin in aluminium and is thus very quiet. In addition, the motor is completely closed, has a special corrosion-resistant painting and is, therefore, suitable for use in extreme conditions, even in areas with corrosive vapours.

The motor F 458 EL has an easy-to-handle electronic speed adjustment additionally to regulate the delivery rate.
The motor F 458-1 is identical to type F 458, but has 700 watts, a much higher performance. This motor is used when a higher capacity is required or when slightly viscous fluids or media with an increased density have to be pumped.

• Protection class: IP 55
• Ventilation: external
• Tension (Volt): 12 V, 24 V, 110 V, 120 V, 230 V, 240 V
• Frequency: 50-60 Hz
• Performance (watt): 460/700 W
• Speed adjustment: Optional
• Weight: 5,1/5,9 kg
• Integral no-volt release: Optional
