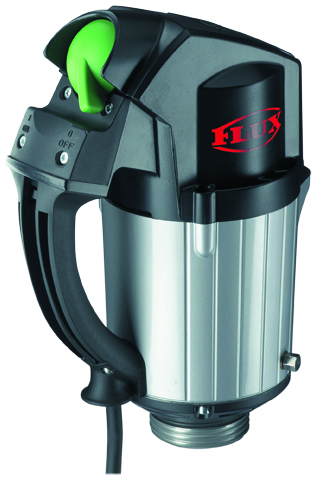

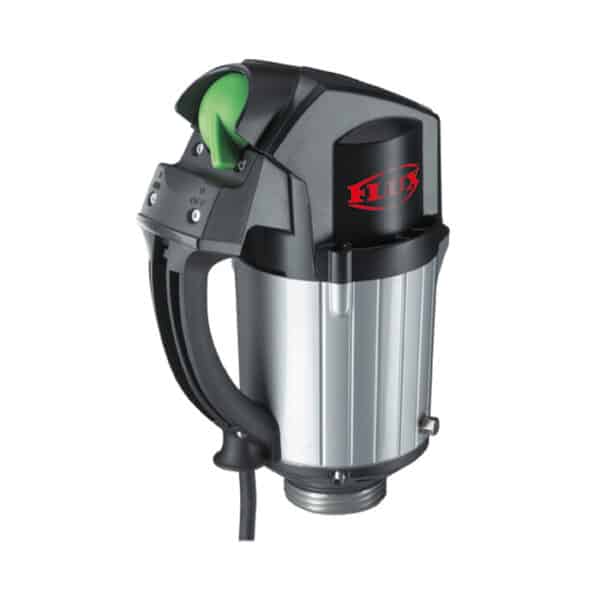

Motor F 460 Ex

The explosion-proof drum pump motor

  • Very robust housing in aluminium
  • Special corrosion-resistant painting
  • With special corrosion-resistant painting
  • Very low noise level
  • Description
  • Tech Specs
  • Characteristics
  • Spare Parts
  • Downloads

The F 460 Ex is a compact commutator motor, has an extremely tough housing with double skin in aluminium and is thus very quiet. The motor is completely closed. The optimal air flow ensures excellent cooling and a service life above the average of the carbon brushes.

The motor F 460 Ex EL has an easy-to-handle electronic speed adjustment to regulate the delivery rate.
The motor F 460-1 Ex is identical to type F 460 Ex but has 700 watts a much higher performance. This motor is used when a higher capacity is required or when slightly viscous fluids or media with an increased density have to be pumped.

• Protection class: IP 55
• Ex: II 2 G Ex d e IIC T6
• Ventilation: external
• Tension (Volt): 12 V, 24 V, 110 V, 120 V, 230 V, 240 V
• Frequency: 50-60 Hz
• Performance (watt): 460/700 W
• Speed adjustment: Optional
• Weight: 5,1/5,9 kg
• Integral no-volt release: Optional
