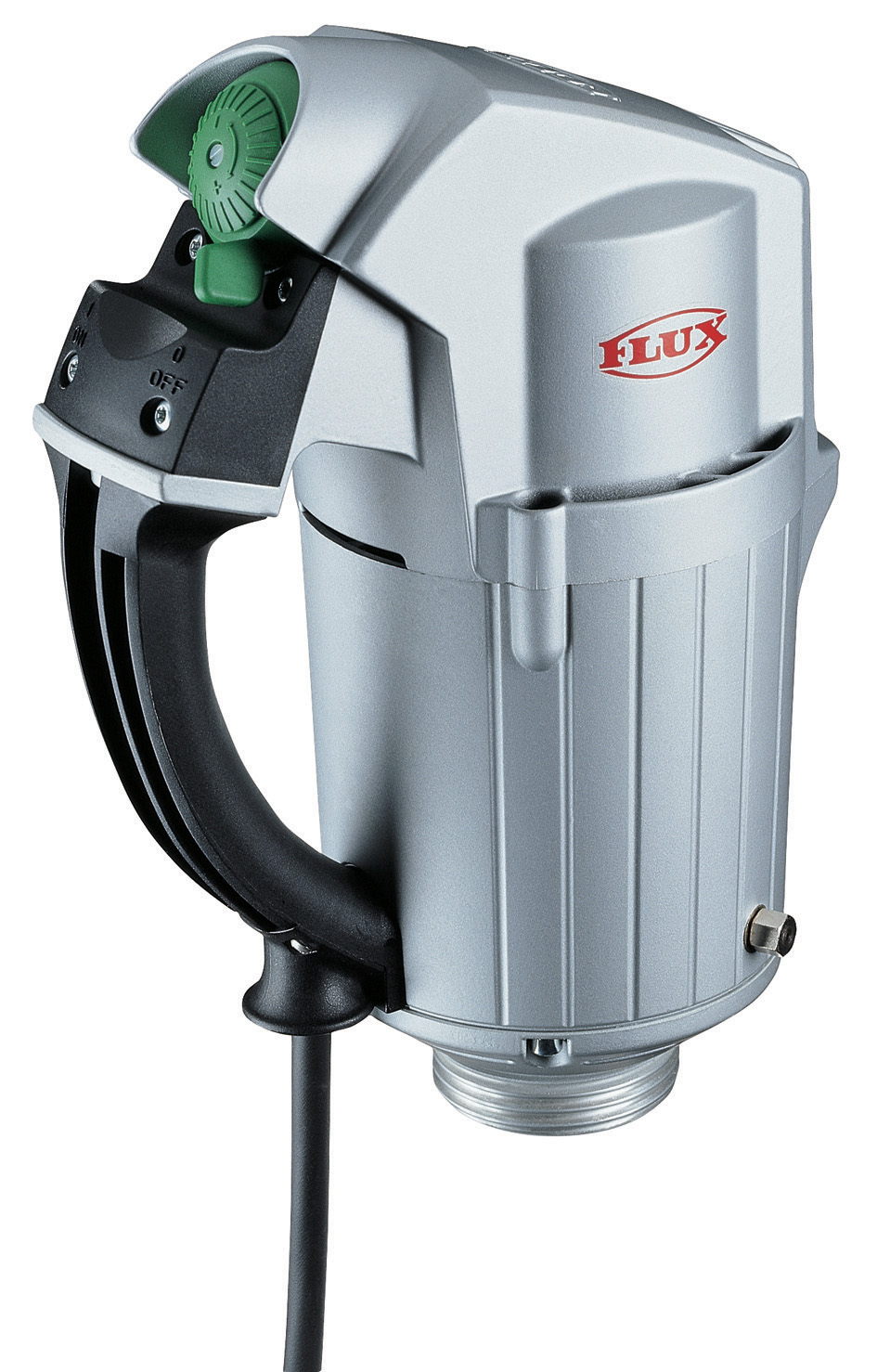

Motor FBM 4000 Ex

The world’s first brushless drum pump motor

  • Very low wear
  • Maintenance-free
  • Low life cycle costs
  • Very low noise level
  • Description
  • Tech Specs
  • Characteristics
  • Spare Parts
  • Downloads

The FBM 4000 Ex is a compact brushless motor, has an extremely tough housing with double skin in aluminium and is thus very quiet. The soft-start and easy-to-handle speed control, integrated into the control knob, allow sensitive dosing. Speed, current and temperature are monitored electronically. The integrated no-volt release prevents an uncontrolled start of the pump, thus guaranteeing optimal safety.

• Protection class: IP 55
• Ex: II 2 G Ex d e IIC T6
• Ventilation: External
• Tension (Volt): 230 V
• Frequency: 50-60 Hz
• Performance (watt): 600 W
• Speed adjustment: Infinitely
• Weight: 6,2 kg
• Integral no-volt release: Yes
