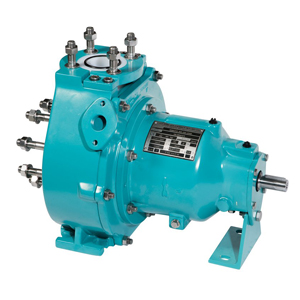

Type series NM

Standardised chemical pump with magnetic coupling

  • Single-stage radial centrifugal pump in process design
  • Semi-open impeller
  • Hermetically sealed with eddy current-free CFRP /PTFE isolation shell
  • Magnetic couplings between 25 and 100 Nm
  • Optionally with an external flushing system
  • Thick-walled, replaceable plastic components
  • Complete metallic enclosure
  • Metallic absorption of all pipe forces
  • Grease lubrication
  • Description
  • Characteristics
  • Downloads

For unit construction (Type series FMonveying aggressive, corrosive or toxic liquids. All sizes are available in unit construction (Type series FM).

Flow rate 0.5 to 80 m³/h
Total head up to 65 m
Main materials and application limits
UHMW-PE up to 90 °C
PVDF up to 115 °C
PTFE/PFA up to 160 °C
Directive 2014/34/EU (ATEX)
Equipment group II
Equipment category 2G
Temperature class T3 or T4
