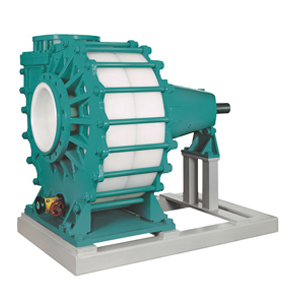

Type series SP

Process pump with mechanical seal

  • Single-stage radial centrifugal pump in process design
  • Closed impeller specially for abrasion loading
  • Thick-walled, replaceable plastic components
  • Metallic enclosure
  • Single-acting WERNERT bellows seal
  • Optional double-acting mechanical seal HRZ 13
  • Metallic absorption of all pipe forces
  • Grease or oil lubrication
  • Description
  • Characteristics
  • Downloads

For conveying aggressive, corrosive or solid laden liquids, e.g. in flue gas desulphurization plants (FGD).

Flow rate 500 to 2500 m³/h
Total head up to 60 m
Main materials and application limits
UHMW-PE up to 90 °C
Directive 2014/34/EU (ATEX)
Equipment group II
Equipment category 2G
Temperature class T3
