VISCOPOWER F 580
For the hygienic application in version with bearing flange up to max. 100.000 mPas
- Smooth pumping of the liquid with very little turbulencesia
- Pump can be completely dismantled
- 100% Made in Germany
- Positive displacement pump
- Description
- Applications
- Tech Specs
- Characteristics
- Spare Parts
- Downloads

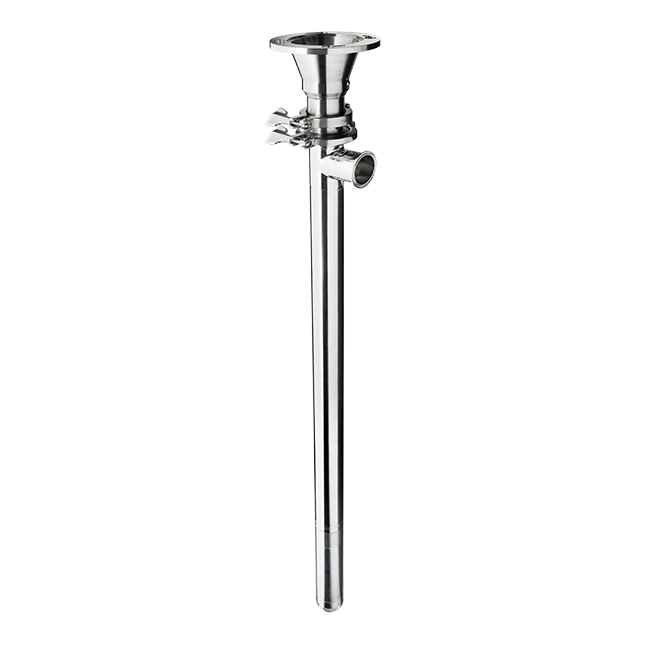

The FLUX progressive cavity pump VISCOPOWER F 580 – Industry with bearing flange is suitable to pump thin to highly viscous media. The positive displacement pump works smoothly at a constant pressure and ensures a gentle, pulsation-free pumping. The progressive cavity pumps VISCOPOWER can be used mobile and stationary, has only a few components and can be easily dismantled.
• Glue
• Paint & lacquers
• Oils
- Flow rate: max. 80 l/min
- Flow pressure: max. 15 bar
- Viscosity: min. 1 mPas – max. 100.000 mPas
- Outer tube diameter: min. 53 mm – max. 53 mm
- Immersion length: 700, 1000, 1200, 1500
- Materials outer tube: Stainless steel
- Seal: Open mechanical seal or closed mechanical seal
- Container: 1000 l IBC, 200 l drums, Small containers, Hobbocks, Tanks > 1000 liter
