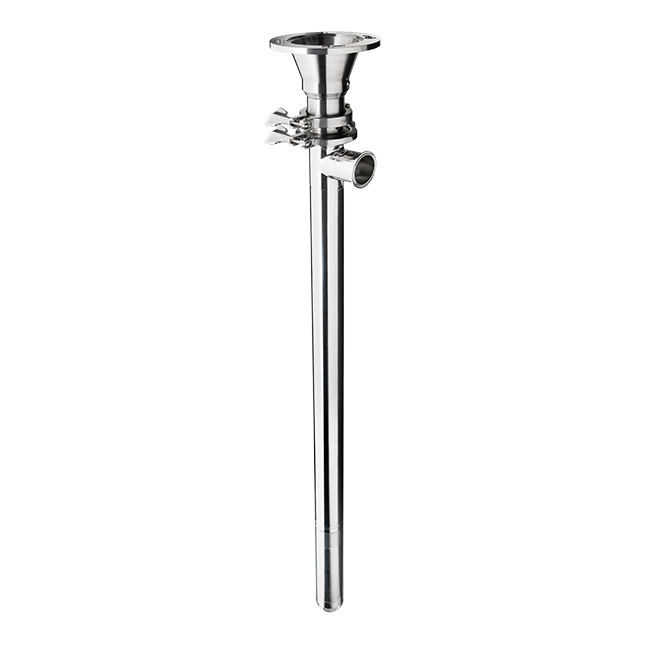

VISCOPOWER F 580

For the industrial application with bearing flange for media up to max. 100.000 mPas

  • Smooth pumping of the liquid with very little turbulencesia
  • Pump can be completely dismantled
  • 100% Made in Germany
  • Positive displacement pump
  • Description
  • Applications
  • Tech Specs
  • Characteristics
  • Spare Parts
  • Downloads

The FLUX progressive cavity pump VISCOPOWER F 580 – Industry with bearing flange is suitable to pump thin to highly viscous media. The positive displacement pump works smoothly at a constant pressure and ensures a gentle, pulsation-free pumping. The progressive cavity pumps VISCOPOWER can be used mobile and stationary, has only a few components and can be easily dismantled.

• Glue
• Paint & lacquers
• Oils

  • Flow rate: max. 80 l/min
  • Flow pressure: max. 15 bar
  • Viscosity: min. 1 mPas – max. 100.000 mPas
  • Outer tube diameter: min. 53 mm – max. 53 mm
  • Immersion length: 700, 1000, 1200, 1500
  • Materials outer tube: Stainless steel
  • Seal: Open mechanical seal or closed mechanical seal
  • Container: 1000 l IBC, 200 l drums, Small containers, Hobbocks, Tanks > 1000 liter
