VISCOFLUX Drum Emptying System Information Request Form

    Please complete this form to provide the information required for our team to determine the best solutions available to meet your needs

    Customer Information

    Customer Requirements

    1. Information about the product to be transfered (at operating temperature)*

    Product*: Viscosity*: mPas*, at: °C

    Ashesion: neutraladhesivegreasing

    2. Description of the application*

    Flow rate*: l/min     Pressure (at discharge side): bar     Hose length: m    Drums/day:pcs
    Operating hours/day: h

    Further information:

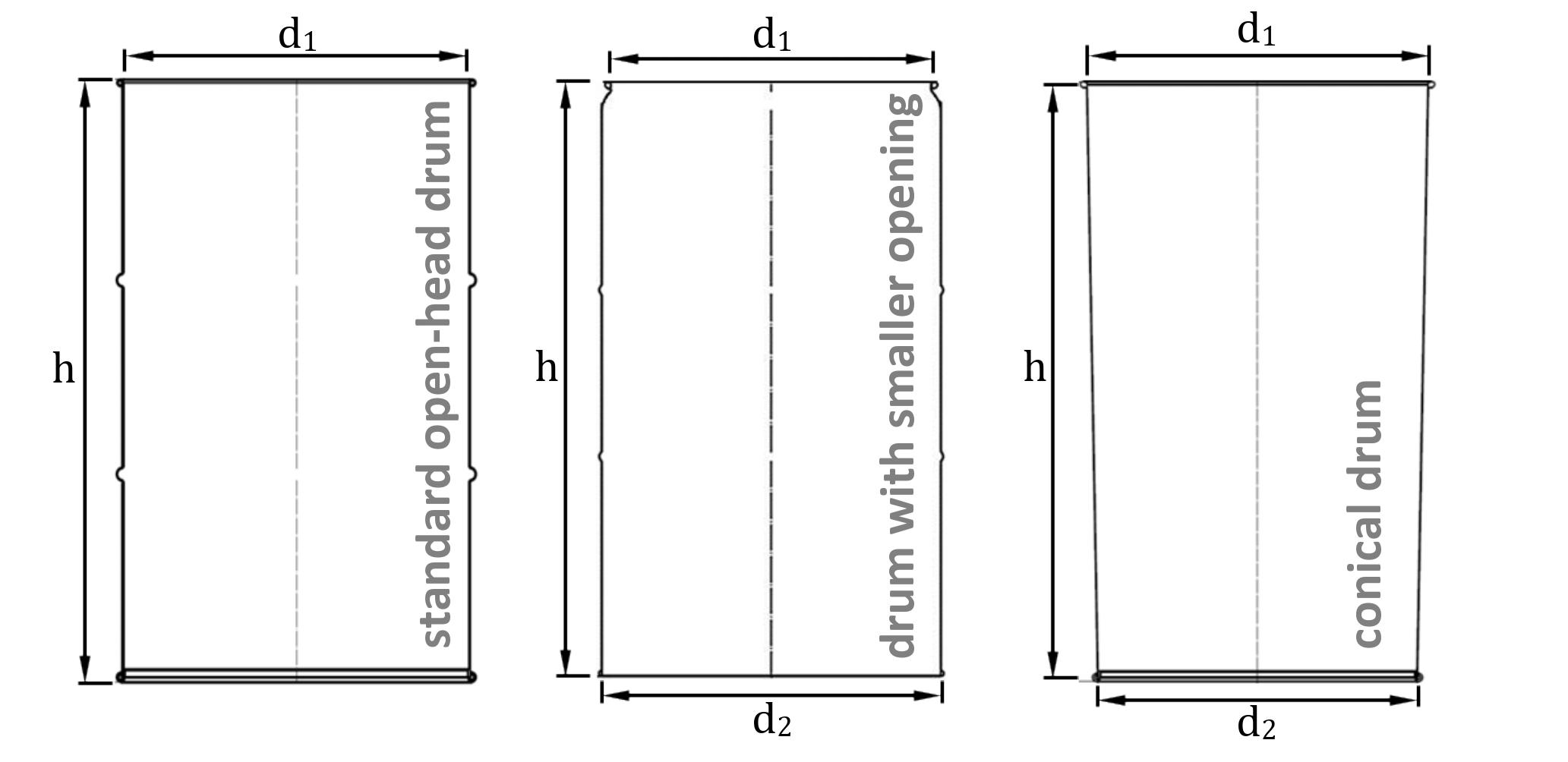

    3. Drum dimensions* (in mm) and drum set up*

    d1= 560 h= 880d1= 560 d2= 571,5 h= 1000d1= 550 d2= 515 h= 975d1= 571,5h= 870










    Inliner: YesNo


    GroundDrum dolly

    Palett (dimensions H*W*D):

    4. Process seal


    NBR(White)FDAFOOD ((EU) Nr. 10/2011)

    5. Selection VISCOFLUX

    VISCOFLUX - litefor higher-viscosity media which are just capable of flowing, out ofVISCOFLUX - for highly viscous, pasty and non-free flowing media, out of cylindrical drums with lids with drum diameter 560 mm and 571,5 mmVISCOFLUX mobile S - for high-viscosity, paste-like and non-free flowing media, out of conical drums, drums with smaller openings and drums with aseptic bags

    6. Pump

    Pump length:
    (only lite / mobile S)

    1.000 mm (up to 880 mm drum height)1.200 mm (from 880 mm drum height)

    Discharge connection:

    G 1 1/2 ARd 58 x 1/6Clamp 2

    Ceiling height:

    7. Stator


    NBRStandardFDAFOOD ((EU) Nr. 10/2011)

    PTFEStandardFDAFOOD ((EU) Nr. 10/2011)

    8. Motor & power supply for motor

    Pneumatic motor

    system pressure: bar

    Three-phase motorconstant motor speed (when motor speed is known)variable motor speed (for viscous / shear sensitive media und kkkeven if the perfect motor speed is not certain)

    3-phase AC mains: 230 V/50 HZ400 V/60 Hz

    custom: V / Hz

    Supply cable:
    (if not known, please attach a photo) 4-cored5-cored

    9. File Upload
