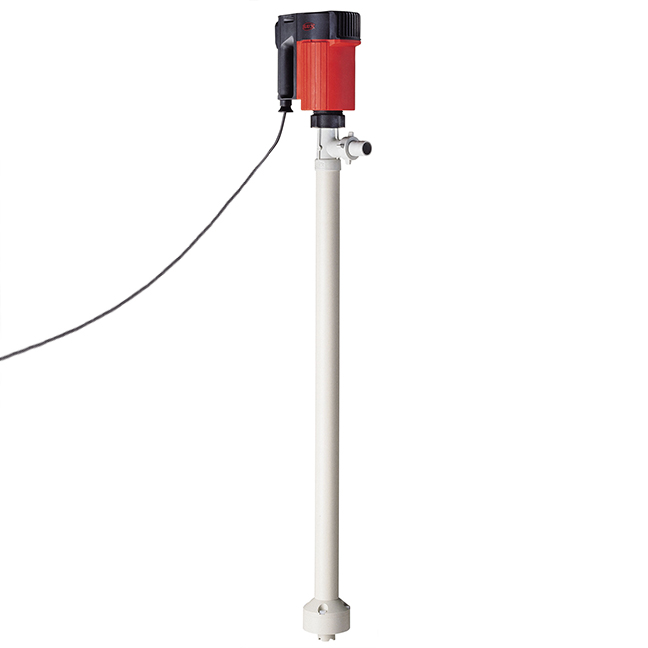

F 430 PP-100/50

Container pump for higher delivery heads

  • Significantly higher delivery head in the range up to 40 l/min compared to pumps with half-axial rotor (Z-rotor)
  • Allows the conveying of liquid out of an IBC stock in the basement into higher floors
  • Minimal force required to change drums
  • Allows the conveying of media out of an IBC stock in the basement into higher floors





  • Description
  • Applications
  • Tech Specs
  • Characteristics
  • Spare Parts
  • Downloads

Pump F 430 PP 100/50 in polypropylene is designed for higher delivery pressure. Instead of a rotor, it is equipped with an impeller in a pump housing. In connection with the powerful FLUX motors the pump delivers a far higher pressure of over 3 bar compared to pumps with semi-axial rotors. This makes it incredibly convenient for conveying media out of e.g. IBCs and other containers into higher lying pipe systems or out of an IBC in the basement to a higher floor.

• Hydrochloric acid
• Boric acid
• Sulfuric acid
• Citric acid
• Lactic acid
• Phthalic acid
• Sodium hydroxide
• Potassium hydroxide
• Ammonia water

Pump Curves F430 Container pump.pdf

Dimensional Drawing F430-AL-41_066.pdf

Dimensional Drawing  F430-AL-41_with-flange_066.pdf

Dimensional Drawing F430-AL-41_with-mixing-tube_066.pdf

Dimensional Drawing F430-PP-40_with-flange_066.pdf

Dimensional Drawing F430-PP-40-with-mixing-tube_066.pdf

Dimensional Drawing F430-PP-50_with-flange_066.pdf

Dimensional Drawing F430-PP-100_066.pdf

Dimensional Drawing F430-S-41-TR_066.pdf

Dimensional Drawing F430-S-41_with-Clamp_0714.pdf

Dimensional Drawing F430-S-41_with-flange_066.pdf

Dimensional Drawing F430_S-50_0515.pdf

Dimensional Drawing F430_S-50_with_flange_0515.pdf

Dimensional Drawing F430S-41_TR_0714.pdf

Dimensional Drawing F430_with-mixing-tube_0414.pdf

Dimensional Drawing F 430 AL-50_066.pdf

Dimensional Drawing F 430 HC-40.pdf

Dimensional Drawing F 430 PP-40_066.pdf

Dimensional Drawing F 430 PP-40 TR_066.pdf

Dimensional Drawing F 430 PP-50_066.pdf

Dimensional Drawing F 430 S-41_066.pdf

• Flow rate: max. 105 l/min1
• Delivery head: max. 32 mwc2
• Viscosity: min. 1 mPas – max. 105 mPas2
• Immersion length: 1000, 1200, 1500
• Materials outer tube: Polypropylene
• Media / Fluids: Acids, Alkalis, hardly flammable liquid, Neutral liquid thin liquid
• Seal: with mechanical seal
• Container: 1000 l IBC
