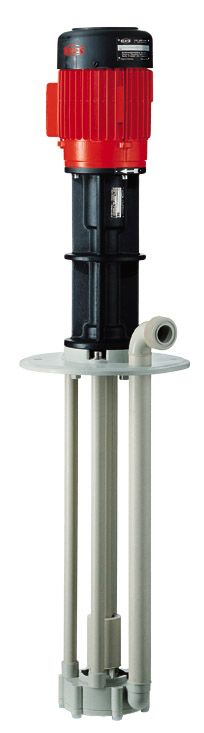

F 726

Stationary circulating and filter pump with impeller for delivery rates up to 750 l/min and extreme conditions of use.

  • Four different sizes for different power ranges
  • Suspended free-flying shaft without any bearings or seals in contact with the liquid
  • Suitable for dry running
  • Also available in version with support tube or alternatively with support bar



  • Description
  • Applications
  • Tech Specs
  • Characteristics
  • Appropriate Motors
  • Spare Parts
  • Downloads

Suitable for conveying and circulating neutral or chemically aggressive fluids throughout the chemical industry and process engineering, electroplating, steel and stainless steel pickling lines, flue gas decontamination, exhaust air purification, water and waste water treatment.

• Electroplating baths with e.g. copper sulphate, chromium, zinc electrolytes
• Chemically aggressive fluids such as inorganic and organic acids, alkalis, salts

• Flow rate: max. 750 l/min1
• Delivery head: max. 35 mwc1
• Viscosity: min. 1 mPas – max. 150 mPas1
• Diameter pump housing: max. 264 mm2
• Diameter mounting flanges: max. 250 mm2
• Materials outer tube: Polypropylene, Polyvinylidene fluoride
• Media / Fluids: Acids, Aggressive media, Alkalis
• Seal: Sealless in the liquid area
• Container: Tanks > 1000 liters

Please contact one of our expert advisors or contact person in the office for an optimal motor dimensioning.
