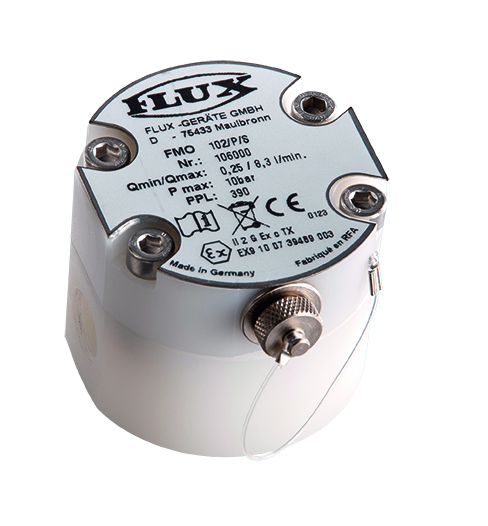

FMO 102

Flow meter for 0,25 – 8,3 l/min

  • Very precise dosing possible
  • High resistancy
  • FOOD version conform EC 1935/2004 and FDA CFR 21 for contact with food available
  • Wide range of viscosities can be covered
  • Can be displayed in liter, gallons or kilogram
  • Description
  • Applications
  • Tech Specs
  • Characteristics
  • Downloads

The flow meter FMO 102 built according to the oval rotor design is suitable for measuring pure, thin to highly viscous media. With the evaluation unit FLUXTRONIC® filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and highest safety. In automatic mode it is possible to output a signal for control purposes with the evaluation unit and the use of a switching amplifier. This way the motor and the magnetic valve can have different processes to be controlled.

• Oils
• Gasoline
• Solvents
• Not self-lubricating media

• Flow rate: min. 0,25 l/min – max. 8,3 l/min
• Filling accuracy: +/- 1 %
• Operating pressure: max. 100 bar
• Viscosity: min. 1 mPas – max. 1000 mPas
• Housing Materials: Polyvinylidene fluoride, Stainless steel
• Media / Fluids: Acids, Alkalis, Fuels, Highly flammable media, Petroleum products, Solvents
