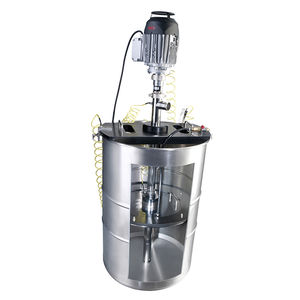

For transferring higher-viscosity materials that are just capable of flowing in the Ex-area

  • Resource saving, up to less than 1 % residue
  • Efficient use of the medium and low expenditure for disposal
  • Fast cleaning as system can be quickly dismantled
  • High flexibility due to low installation height

  • Description
  • Applications
  • Tech Specs
  • Characteristics
  • Spare Parts
  • Downloads

In the Ex-version it is suitable for use in hazardous areas of zone 1 and for transferring a wide variety of flammable media (zone 0/1). The system transports the media gently and continuously.

Like the VISCOFLUX, the VISCOFLUX lite and the VISCOFLUX mobile S, the VISCOFLUX lite Ex leaves less than 1 % of the media in the drum.

• Substances just capable of flowing
• Soft lubricating greases up to NLGI class 2 (e. g. machinery greases)
• Levelling compounds
• Base materials for paints and varnishes
• Solvent-based blend pastes
• Coating compounds (base coats)
• Adhesives/construction glues/fixing compounds
• Corrosion protection gels

• Delivery rate: max. 50 l/min
• Delivery pressure: max. 8 bar
• Viscosities: up to max. 500.000 mPas
• Residue in the drum less than 1 %
• Designed for ISO drums with lid with an inner diameter of 571.5 mm
• Follower plate seals off the material, airtight
• The flexible process seal makes sure almost no material remains on the drum wall
• Eccentric worm-drive pump for gentle transport of the medium with little turbulence and pulsation
• Combination of pump and motor can be individually adapted to the medium to be transported (modular system)
