VISCOFLUX Mobile S
The drum emptying system with many advantages
- Designed for use in hygienic areas
- With an integrated automatic freewheel
- Designed with minimal dead space and protection class IP 66
- Residual amount in drums, less than 1%
- Mobile and compact
- Stainless steel construction, electronics and battery encapsulated to protect against moisture
- Description
- Applications
- Tech Specs
- Characteristics
- Spare Parts
- Downloads

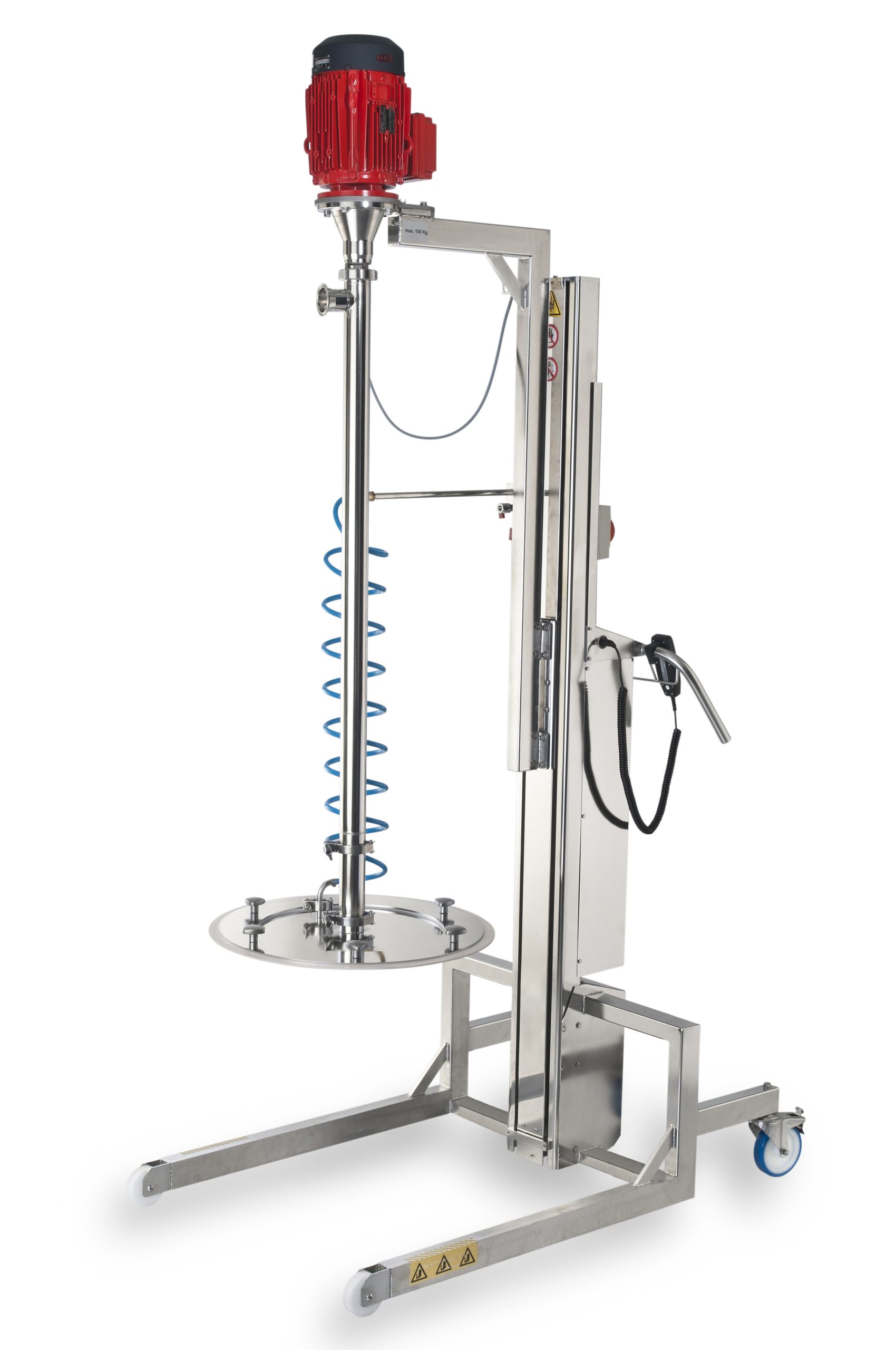

The VISCOFLUX mobile S drum emptying system was specifically designed for use in the pharmaceutical, food and cosmetics industries. It is ideally suited for ensuring efficiency and process safety while pumping high viscosity, paste-like, non-self-flowing media out of diverse drums – either with or without aseptic bags. Media can be transferred low-shear and continuously. The residual amount remaining in the drum is less than 1%. The mobile drum emptying system offers a high degree of flexibility and can also be operated in wet or damp production environments. The system’s stainless steel process device bears the protection class IP 66.
• Tomato puree
• Caramel
• Fruit and vegetable concentrates
• Peanut butter
• Mayonnaise
• Nut nougat paste
• Chocolate (heated)
• Concentrates for making sauces
• Grease
• Vaseline
• Ointments
• Hair and body care products
• Wax, semi-solid
• Glycerine
• Lip gloss
• Mascara
• Facial masks
• Delivery rate max. 50 l/min
• Delivery pressure max. 8 bar
• Process device: battery operated, made of stainless steel with rollers made of solid plastic, IP 66, carrying load up to 100 kg, chassis available in two standard sizes:
• 470 mm for euro pallets, 890 mm additionally for free-standing drums, drum dollies and universal pallets with 4 drums
• For drum diameters: 560 mm or 571 mm, for conical drums (550 mm on top, 515 mm at the bottom), for drums with small openings Ø 540 mm on top, Ø 571 mm at the bottom
• Pumps: Ø 54 mm, length 1,000 mm and 1,200 mm
• F 560 also for left/right operation, also in FOOD version conform EC 1935/2004 and FDA CFR 21 for food uses (F 550 for industrial applications)
• Motors: Three-phase motors from 0.75 kW, spur gear drive motors, compressed air motors
• Process seal: NBR material conform EC 1935/2004, or FDA or FKM
• Power supply for motor and switching cabinet
• Ball valves for pressurised air provision, aeration and venting
